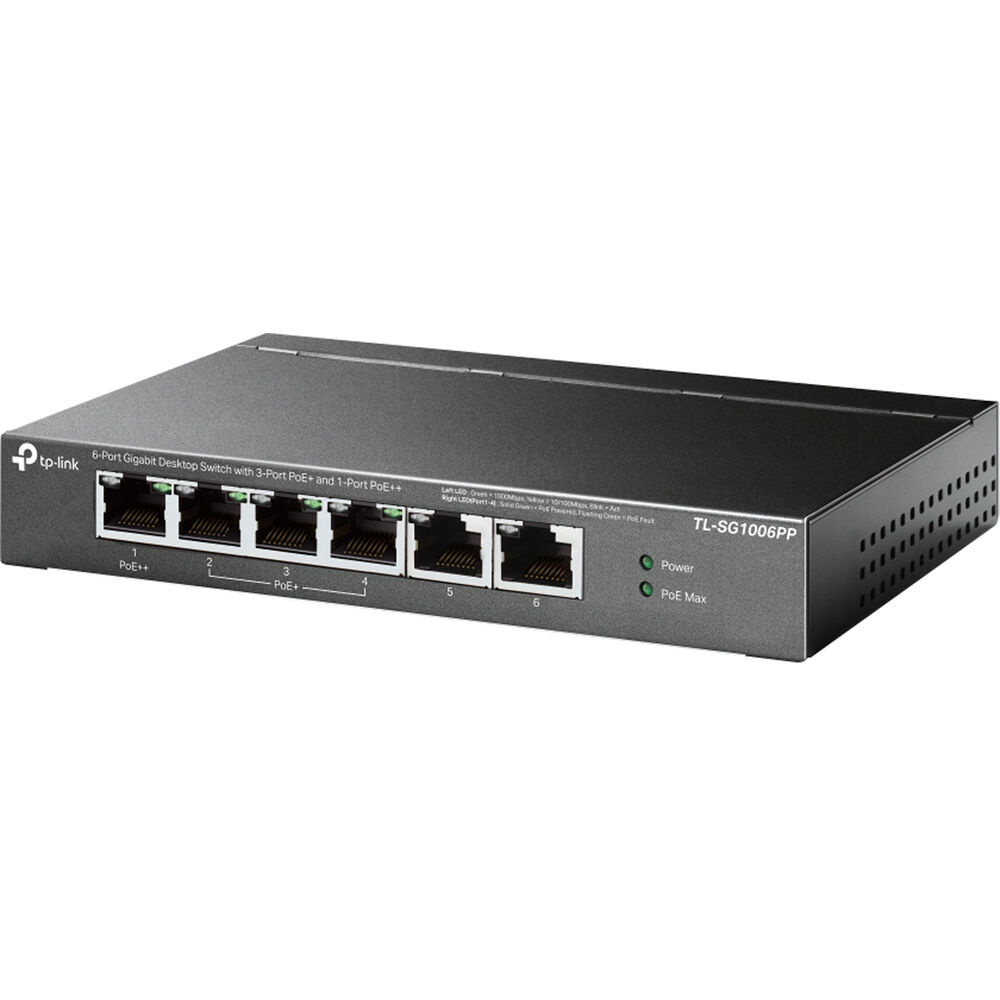

TP-Link TL-SG1006PP 6-Port Gigabit PoE+ / PoE++ Compliant Unmanaged Network Switch

Product #110105 | SKU TL-SG1006PP | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $119
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $5.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • 1 x Gigabit Ethernet PoE++ Port (60W)
  • 3 x Gigabit Ethernet PoE+ Ports (30W)
  • 2 x Gigabit Ethernet Ports
  • 12 Gb/s Switching Capacity
  • 8.928 Mpps Forwarding Rate
  • 64W Power Budget

Description

Expand your business or home's network with the TP-Link TL-SG1006PP 6-Port Gigabit PoE+ / PoE++ Compliant Unmanaged Network Switch to simplify the process of setting up powered devices such as IP security cameras, access points, and VoIP phones. This switch offers six Gigabit Ethernet ports, with one port providing up to 60W of power to PoE++ devices and three ports supporting up to 30W of power to PoE+ devices with a total budget of 64W. Additionally, there are two non-PoE ports for Gigabit uplink connections.

No complex setup or configuration is necessary thanks to its plug-and-play design. The switch automatically detects compatible devices and adjusts power allocation accordingly. It can also reboot unresponsive devices by power cycling. By enabling extend mode, the switch can achieve a range of up to 820 feet and data transfer speeds of up to 10 Mb/s. With a switching capacity of 12 Gb/s and a forwarding rate of 8.928 Mpps, the TL-SG1006PP ensures efficient and reliable data transfers.

Specifications

Key Specs
Wi-Fi No
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 3)
3 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
PoE Power Budget 64 W
Interfaces
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 3)
3 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Transmission Method Store-and-Forward
MAC Address Table Size 4K
Standards
Supported IEEE Standards 802.1p, 802.3af, 802.3at, 802.3bt, 802.3x
Performance
Forwarding Rate 8.92 Mpps
Switching Bandwidth 12 Gb/s
Electrical
Power Draw 71.46 W (Max)
DC Input Power 53.5 VDC at 1.31 A
AC Input Power No
PoE Power Budget 64 W
PoE per Port 30 to 60 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Certifications FCC, COE, RoHS
Cooling System Passive
Material of Construction Metal
Indicator Lights Activity
Dimensions 6.2 x 4 x 1" / 158 x 101 x 25 mm

In The Box

  • TP-Link TL-SG1006PP 6-Port Gigabit PoE+ / PoE++ Compliant Unmanaged Network Switch
  • Power Adapter
