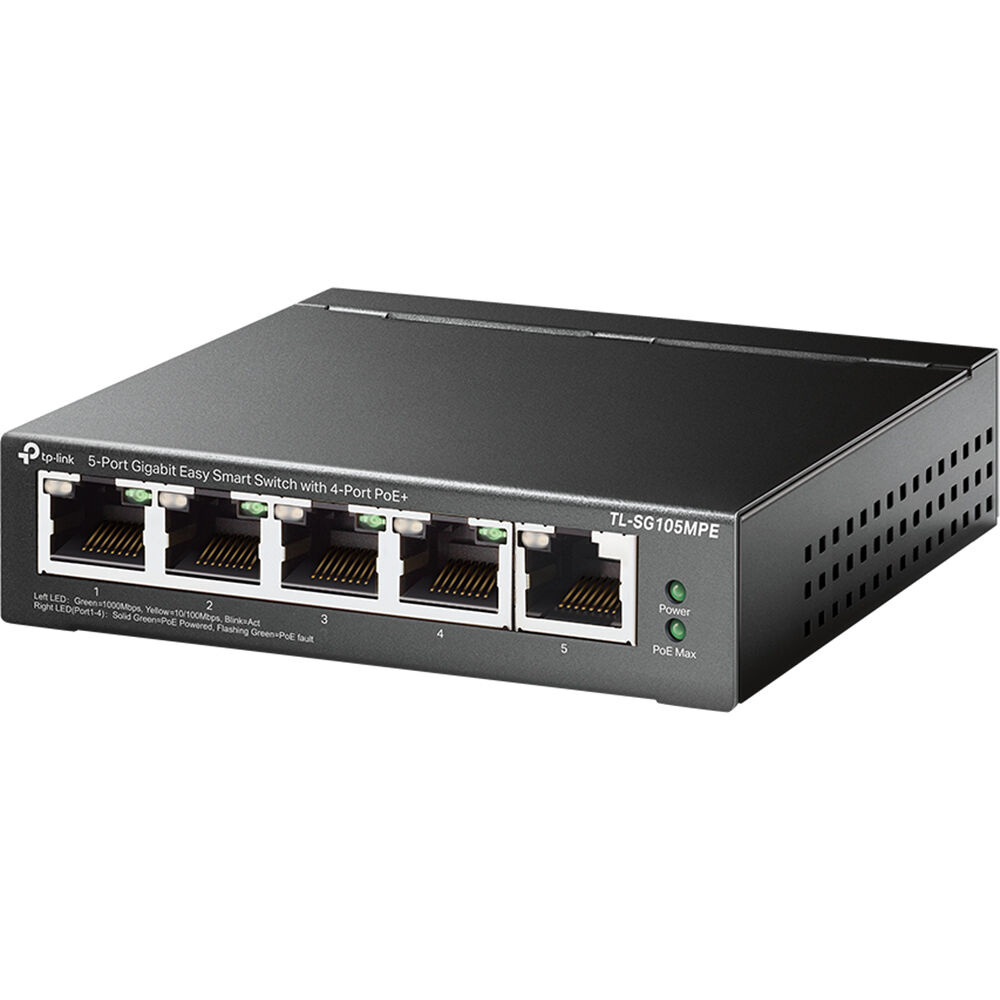

TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Compliant Managed Switch

Product #107388 | SKU TL-SG105MPE | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $149
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $9.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 5 working days
Click & Collect

Features

  • 5 x Gigabit Ethernet Ports
  • 4 x PoE+ Compliant Ports
  • 10 Gb/s Switching Capacity
  • 7.44 Mpps Forwarding Rate
  • Desktop Design
  • 120W Power Budget

Description

The TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Compliant Managed Switch is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

TL-SG105MPE offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, the TL-SG105MPE offers a variety of useful features, including network monitoring, traffic prioritisation, and enhanced QoS.

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Specifications

Wi-Fi None
Interfaces
Inputs/Outputs 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Transmission Method Store-and-Forward
Jumbo Frames Support 16,000 Bytes
MAC Address Table Size 2K
VLAN Groups 32
VLAN IDs 4000
Security
Security Features Storm Control
Standards
Supported IEEE Standards 802.1p, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3p, 802.3q, 802.3u, 802.3x
Performance
Forwarding Rate 7.44 Mpps
Switching Bandwidth 10 Gb/s
Priority Queues 4
Packet Buffer 1 Mb
Electrical
Power Draw 137.01 W (Max)
DC Input Power 53.5 VDC at 2.43 A
PoE Power Budget 120 W
PoE per Port 30 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 95%
General
Cooling System Passive
Dimensions 3.9 x 3.9 x 1" / 99.8 x 98 x 25 mm

In The Box

  • TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Compliant Managed Switch
  • Power Adapter
  • Rubber Feet

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Compliant Managed Switch
  • Manufacturer: TP-Link
  • Model: TL-SG105MPE
  • SKU: TL-SG105MPE
  • RM Product #: 107388
