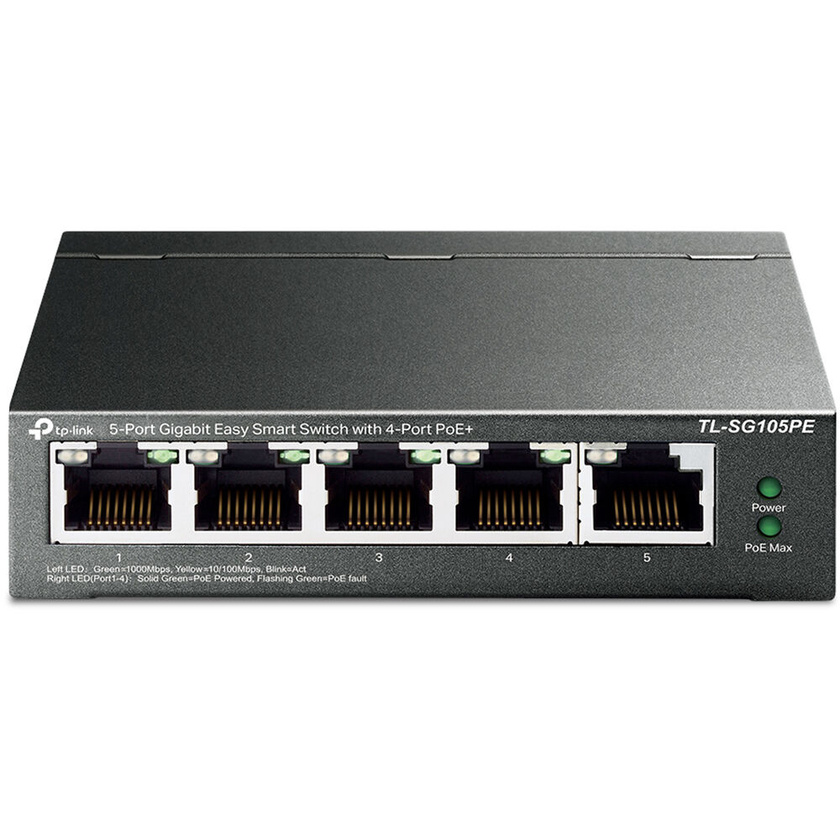

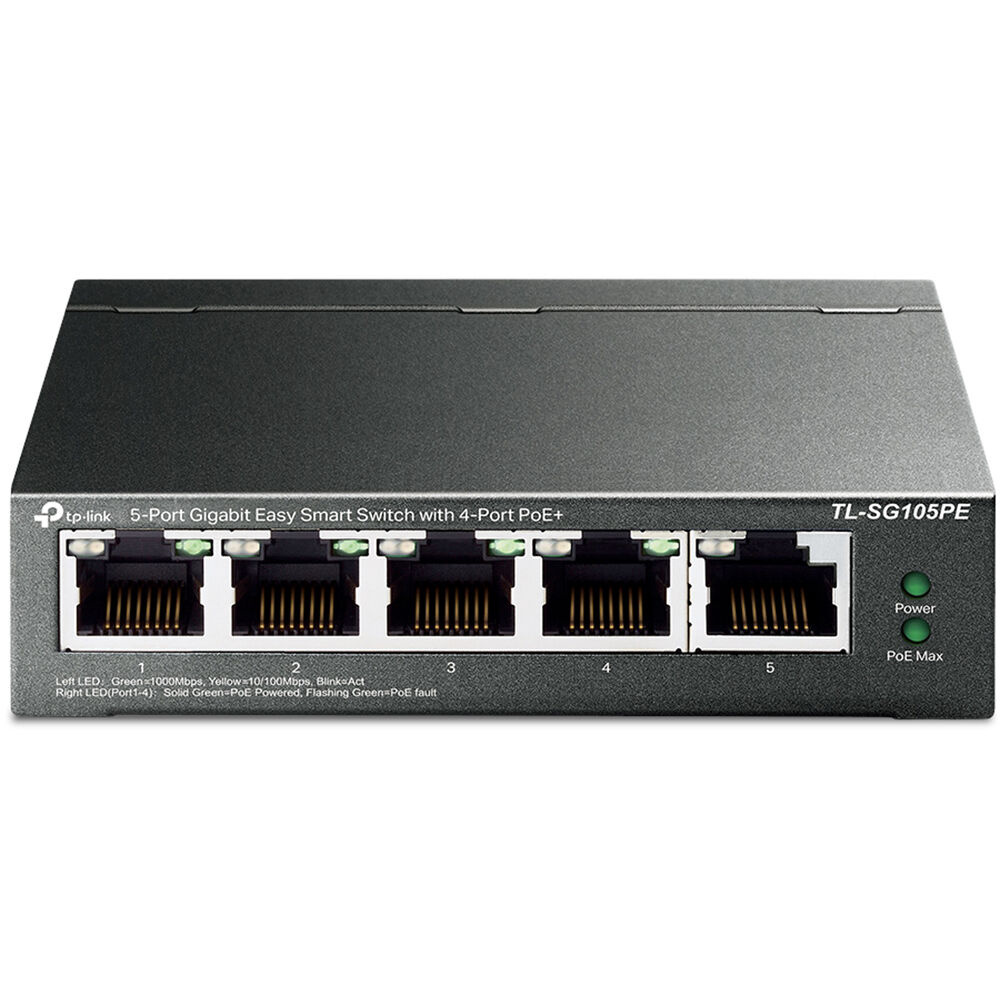

TP-Link TL-SG105PE 5-Port Gigabit PoE+ Compliant Unmanaged Switch

Product #107269 | SKU TL-SG105PE | TP-Link
Usually ships in 2 - 3 weeks what does this mean?
Our Price $77.99
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $7.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 5 x Gigabit Ethernet Ports
  • 4 x PoE+ Compliant Ports
  • 10 Gb/s Switching Capacity
  • 7.44 Mpps Forwarding Rate
  • Desktop Design
  • 65W Power Budget

Description

The TP-Link TL-SG105PE 5-Port Gigabit PoE+ Compliant Unmanaged Switch is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritisation, and enhanced QoS.

Specifications

Interfaces
Inputs/Outputs 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols
Layer Services Supported Layer 2 Support
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring
Transmission Method Store-and-Forward
Jumbo Frames Support 16,000 Bytes
MAC Address Table Size 2K
Multicast Groups 128
VLAN Groups 32
VLAN IDs 4000
Security
Security Features Storm Control
Standards
Supported IEEE Standards 802.1p, 802.1q, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3u, 802.3x
Performance
Forwarding Rate 7.44 Mpps
Switching Bandwidth 10 Gb/s
Packet Buffer 1.5 Mb
Electrical
Power Draw 4.5 W (Active)
75.2 W (Max)
DC Input Power 53.5 VDC at 1.3 A
PoE Power Budget 65 W
PoE per Port 30 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 95%
General
Cooling System Passive
Indicator Lights Link/Activity, PoE, Power
Dimensions 3.9 x 3.9 x 1" / 99.8 x 98 x 25 mm

In The Box

  • TP-Link TL-SG105PE 5-Port Gigabit PoE+ Compliant Unmanaged Switch
  • Power Adapter
  • Pack of Rubber Feet

Reviews

5.0 (based on 1 rating)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review
  • Kevin
    Took out of the box and it just works perfectly.. Will make my streaming easier as it will also carry power to my future NDI box
    Read more Read less

Details

  • Product: TP-Link TL-SG105PE 5-Port Gigabit PoE+ Compliant Unmanaged Switch
  • Manufacturer: TP-Link
  • Model: TL-SG105PE
  • SKU: TL-SG105PE
  • RM Product #: 107269
