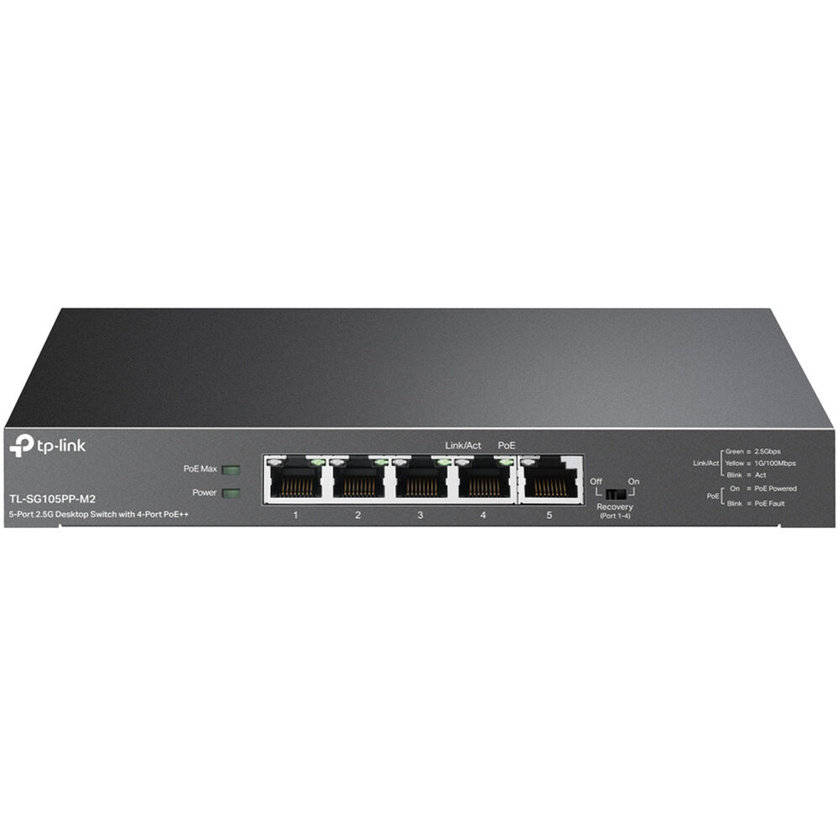

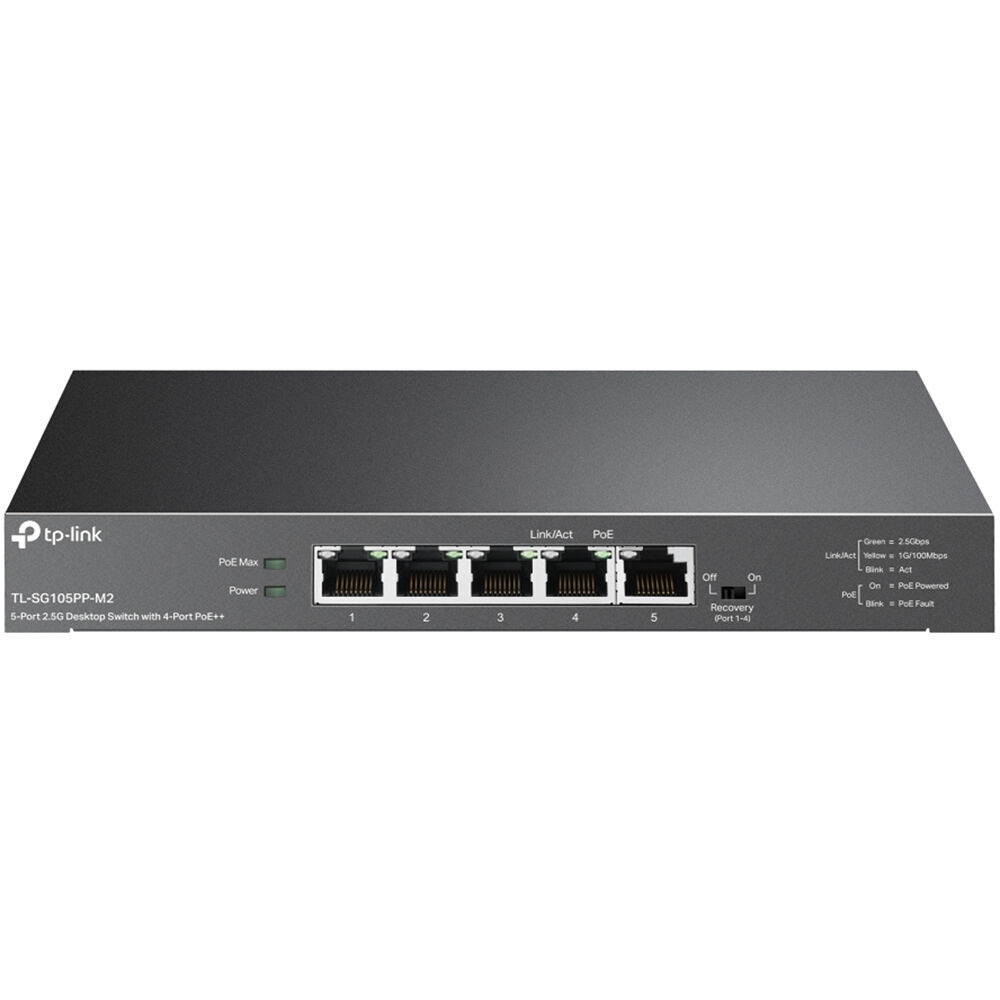

TP-Link TL-SG105PP-M2 5-Port 2.5G PoE++ Compliant Unmanaged Network Switch

Product #112315 | SKU TL-SG105PP-M2 | TP-Link
Usually ships in 2 - 3 weeks what does this mean?
Our Price $249
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $8.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 5 x 2.5G Ethernet Ports
  • 4 x PoE++ Compliant Ports (60W)
  • 25 Gb/s Switching Capacity
  • 18.6 Mpps Forwarding Rate
  • Desktop Mountable Design
  • Up to 123W Power Budget

Description

The TP-Link TL-SG105PP-M2 5-Port 2.5G PoE++ Compliant Unmanaged Network Switch is equipped with four PoE++ ports, allowing data and power to be transmitted through a single cable. It is compatible with PDs that adhere to IEEE 802.3af/at/bt type3 standards. To ensure the smooth flow of latency-sensitive traffic, it supports 802.1p/DSCP QoS. Each PoE++ port can deliver up to 60 W of power, while all PoE ports have a combined power capacity of 123 W. The switch features PoE Auto Recovery, which automatically restarts dropped or unresponsive PD devices to maintain stable operation. With its plug and play functionality, no configuration or installation is required.

Specifications

Key Specs
Inputs/Outputs 1x RJ45 2.5 GbE
4x RJ45 2.5 GbE PoE++ (Type 3)
PoE Power Budget 123 W
Interfaces
Inputs/Outputs 1x RJ45 2.5 GbE
4x RJ45 2.5 GbE PoE++ (Type 3)
Protocols
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Transmission Method Store-and-Forward
MAC Address Table Size 4K
Standards
Supported IEEE Standards 802.1p, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3x
Performance
Forwarding Rate 18.6 Mpps
Switching Bandwidth 25 Gb/s
Electrical
Power Draw 143.37 W (Max)
DC Input Power 53.5 VDC at 2.43 A
AC Input Power No
PoE Power Budget 123 W
PoE per Port 60 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Certifications FCC, COE, RoHS
Cooling System Passive
Dimensions 8.2 x 5 x 1" / 209 x 126 x 26 mm

In The Box

  • TP-Link TL-SG105PP-M2 5-Port 2.5G PoE++ Compliant Unmanaged Network Switch
