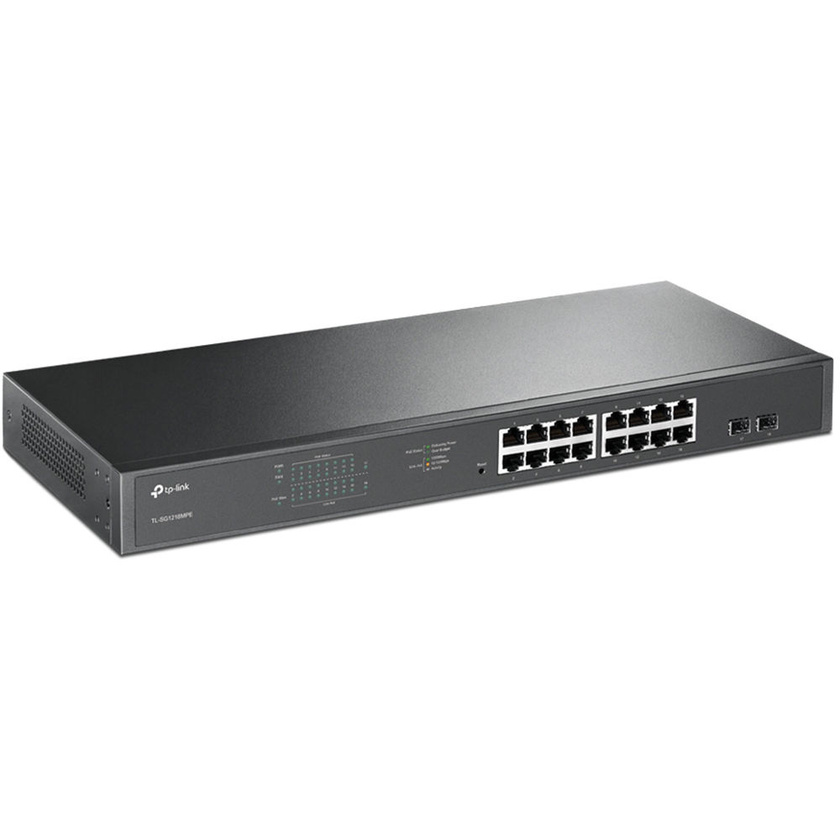

TP-Link TL-SG1218MPE JetStream 16-Port Gigabit PoE+ Compliant Managed Switch with SFP

Product #107399 | SKU TL-SG1218MPE | TP-Link
In stock Ships Tuesday
Our Price $441.36
In stock Ships Tuesday
- +

this item may be nonreturnable
Shipping & Availability
Ships Tuesday. Deliver to Auckland for $14 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 5 working days
Click & Collect

Features

  • 16 x Gigabit PoE+ Ports
  • 2 x SFP Ports
  • 36 Gb/s Switching Capacity
  • 23.8 Mpps Forwarding Capacity
  • Rack-Mountable Design
  • Up to 192W Power Budget

Description

The TP-Link TL-SG1218MPE JetStream 16-Port Gigabit PoE+ Compliant Managed Switch with SFP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Specifications

Interfaces
Inputs/Outputs 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 10/100/1000 Mb/s Gigabit SFP
Protocols
Layer Services Supported Layer 2 Support
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring
Transmission Method Store-and-Forward
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
Multicast Groups 128
VLAN IDs 32
Security
Security Features DHCP Snooping
Storm Control
Standards
Supported IEEE Standards 802.1p, 802.1q, 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x
Performance
Forwarding Rate 23.8 Mpps
Switching Bandwidth 36 Gb/s
Packet Buffer 4.1 Mb
Electrical
Power Draw 18.73 W (Active)
217.22 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 192 W
PoE per Port 30 W
Environmental
Operating Temperature 32 to 82°F / 0 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 9%
General
Cooling System Fan
Rack Form Factor 1 RU
Dimensions 17.32 x 7.09 x 1.73" / 440 x 180 x 44 mm

In The Box

  • TP-Link TL-SG1218MPE JetStream 16-Port Gigabit PoE+ Compliant Managed Switch with SFP
  • Power Cord
  • Rackmount Kit
  • Rubber Feet Pack
  • Resource CD
