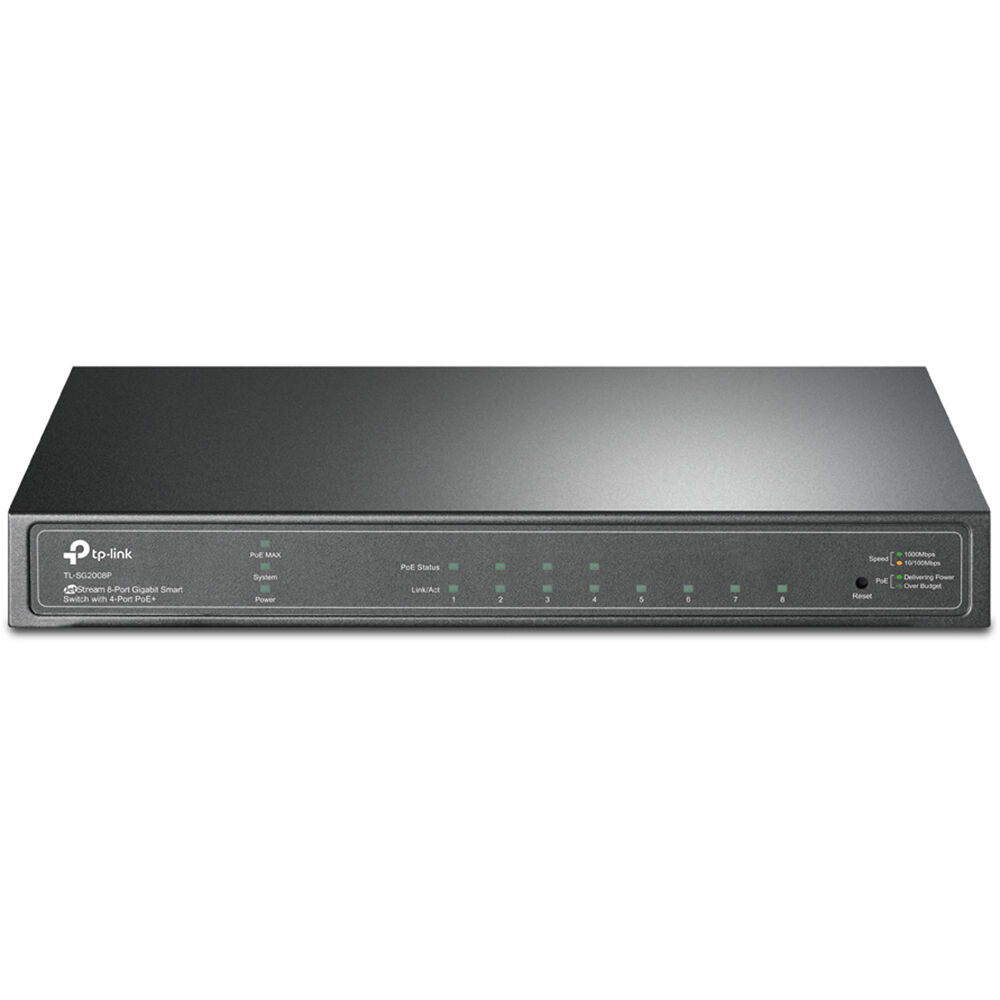

TP-Link TL-SG2008P JetStream 8-Port PoE+ Compliant Gigabit Managed Switch

Product #107395 | SKU TL-SG2008P | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $209
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $12 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 working days
Click & Collect

Features

  • 8 x Gigabit Ethernet Ports
  • 4 x PoE+ Compliant Ports
  • 16 Gb/s Switching Capacity
  • 11.9 Mpps Forwarding Rate
  • Desk- & Wall-Mountable Design
  • Up to 62W Power Budget

Description

The TP-Link TL-SG2008P JetStream 8-Port PoE+ Compliant Gigabit Managed Switch is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Specifications

Interfaces
Inputs/Outputs 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
Protocols
Layer Services Supported Layer 2 Support
Supported Protocols Auto-MDIX/MDI
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
SNMPv1
SNMPv2c
SNMPv3
Queueing Strict Priority, Weighted Round Robin (WRR)
Transmission Method Store-and-Forward
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
Security
Security Features DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
IP Interfaces 16
Static Routes 32
SNMP Support 1, 2c, 3
Standards
Supported IEEE Standards 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3i, 802.3u, 802.3x
Performance
Forwarding Rate 11.9 Mpps
Switching Bandwidth 16 Gb/s
Priority Queues 8
Packet Buffer 4.1 Mb
Computer
Flash Memory 32 MB
RAM Buffer 256 MB per Device
Electrical
Power Draw 7.9 W
79.2 W (Max)
2.89 W (Standby)
DC Input Power 53.5 VDC at 1.3 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 62 W
PoE per Port 30 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Cooling System Passive
Material of Construction Metal
Dimensions 8.2 x 5 x 1" / 209 x 126 x 26 mm

In The Box

  • TP-Link TL-SG2008P JetStream 8-Port PoE+ Compliant Gigabit Managed Switch
  • Power Adapter
  • Rubber Feet

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: TP-Link TL-SG2008P JetStream 8-Port PoE+ Compliant Gigabit Managed Switch
  • Manufacturer: TP-Link
  • Model: TL-SG2008P
  • SKU: TL-SG2008P
  • RM Product #: 107395
