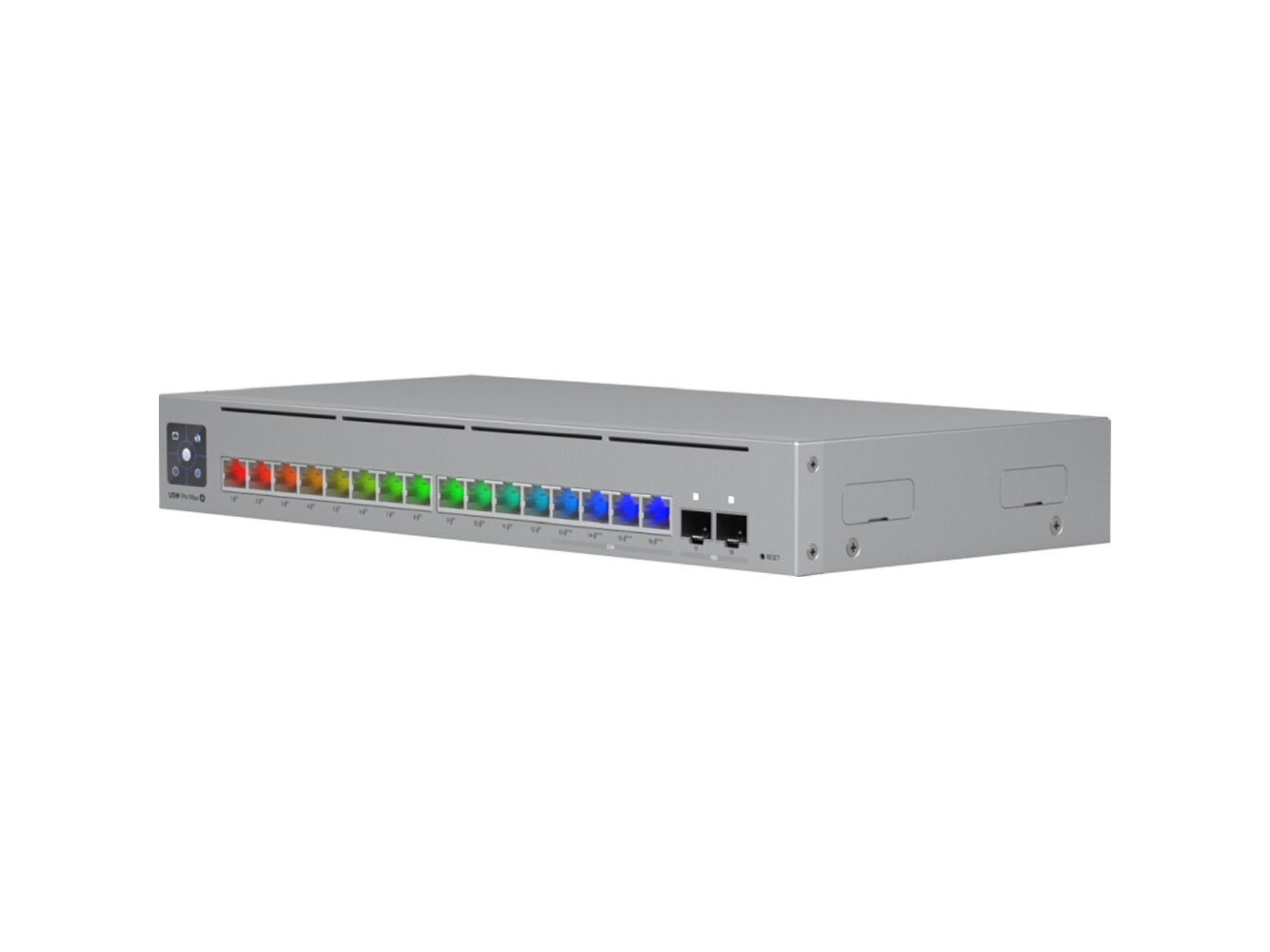

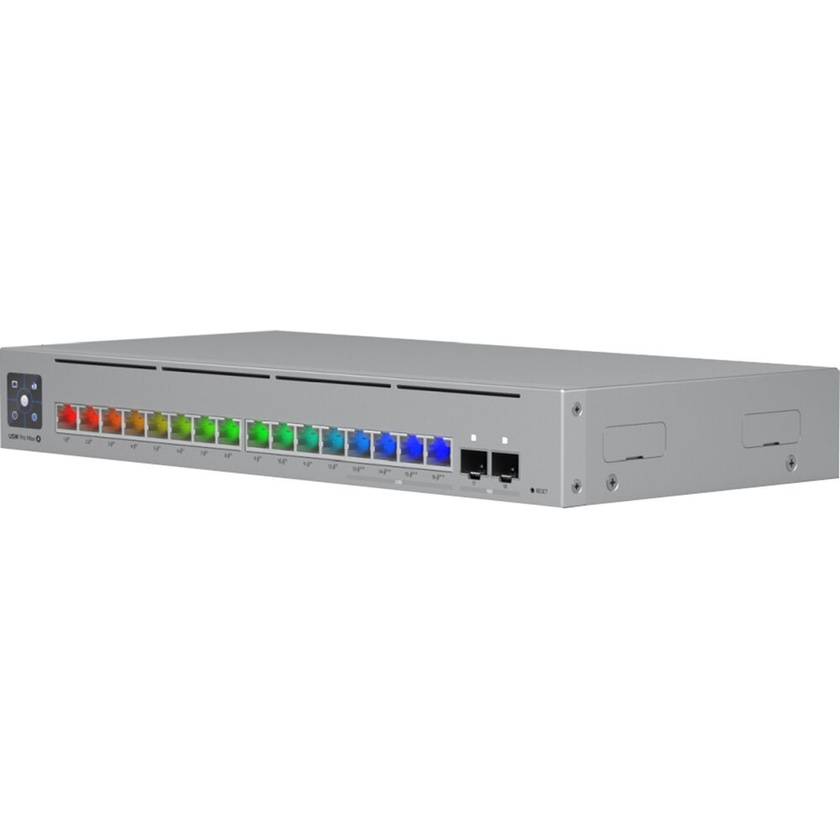

Ubiquiti Networks Pro Max 16 PoE 16-Port 2.5G / 1G Managed Network Switch

Product #119626 | SKU USW-PRO-MAX-16-POE | Ubiquiti
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $929.34
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 4 - 5 working days
Click & Collect

Features

  • 12 x Gigabit Ethernet PoE+ Ports (30W)
  • 4 x 2.5G Ethernet PoE++ Ports (60W)
  • 2 x 10G SFP+ Ports
  • 84 Gb/s Switching Capacity
  • 62.496 Mpps Forwarding Rate
  • 1.3" Touchscreen | Etherlighting Ports

Description

Expand your business's connectivity options by incorporating the Ubiquiti Networks Pro Max 16 PoE 16-Port 2.5G / 1G Managed Network Switch. This switch is designed to cater to advanced IP cameras, access points, and other PoE compatible devices. Featuring four 60W 2.5G PoE++ Ethernet ports and twelve 30W Gigabit speed Ethernet ports, this switch boasts a 180W total power budget for your equipment. Additionally, benefit from two SFP+ ports for dependable uplinks of up to 10 Gb/s.

With Etherlighting technology, each port is illuminated to display important information such as port location, speed/link status, and native VLAN/network configurations when used with appropriate cables. The 1.3" touchscreen display offers a convenient way to check critical status updates at a glance. Enjoy a seamless data transfer experience with a 84 Gb/s (42 Gb/s non-blocking) switching capacity, 62.496 Mpps forwarding rate, and Layer 3 capabilities provided by the Pro Max 16 PoE. Manage its settings effortlessly through the UniFi Network platform.

Specifications

Key Specs
Inputs/Outputs 12x RJ45 PoE+ (30 W, 802.3at)
4x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3)
2x SFP+ 10 GbE
1x RJ45
Stackable No
Switching Bandwidth 84 Gb/s
42 Gb/s (Non-Blocking)
PoE Power Budget 180 W
Stackable No
Protocols
Layer Services Supported Layer 3
Supported Protocols Auto-MDIX/MDI
Link Aggregation
Security
Security Features Storm Control
Performance
Forwarding Rate 62.49 Mpps
Switching Bandwidth 84 Gb/s
42 Gb/s (Non-Blocking)
Electrical
PoE per Port 15.4 to 60 W
PoE Power Budget 180 W
Power Draw 30.00 W
Power Supply Type External
General
Certifications COE, FCC, IC
Operating Conditions 23 to 104°F / -5 to 40°C at 10 to 90% Humidity
Noise Level 0.0 dB
Cooling System Passive
Material of Construction Steel
Indicator Lights Yes
Rack Mountable Yes
Dimensions 12.8 x 6.3 x 1.7" / 325.1 x 160 x 43.7 mm
Weight 4.6 lb / 2.1 kg

In The Box

  • Ubiquiti Networks Pro Max 16 PoE 16-Port 2.5G / 1G Managed Network Switch
  • Power Adapter
  • Wall Mounting Kit
  • Rubber Feet
  • Prying Tool
