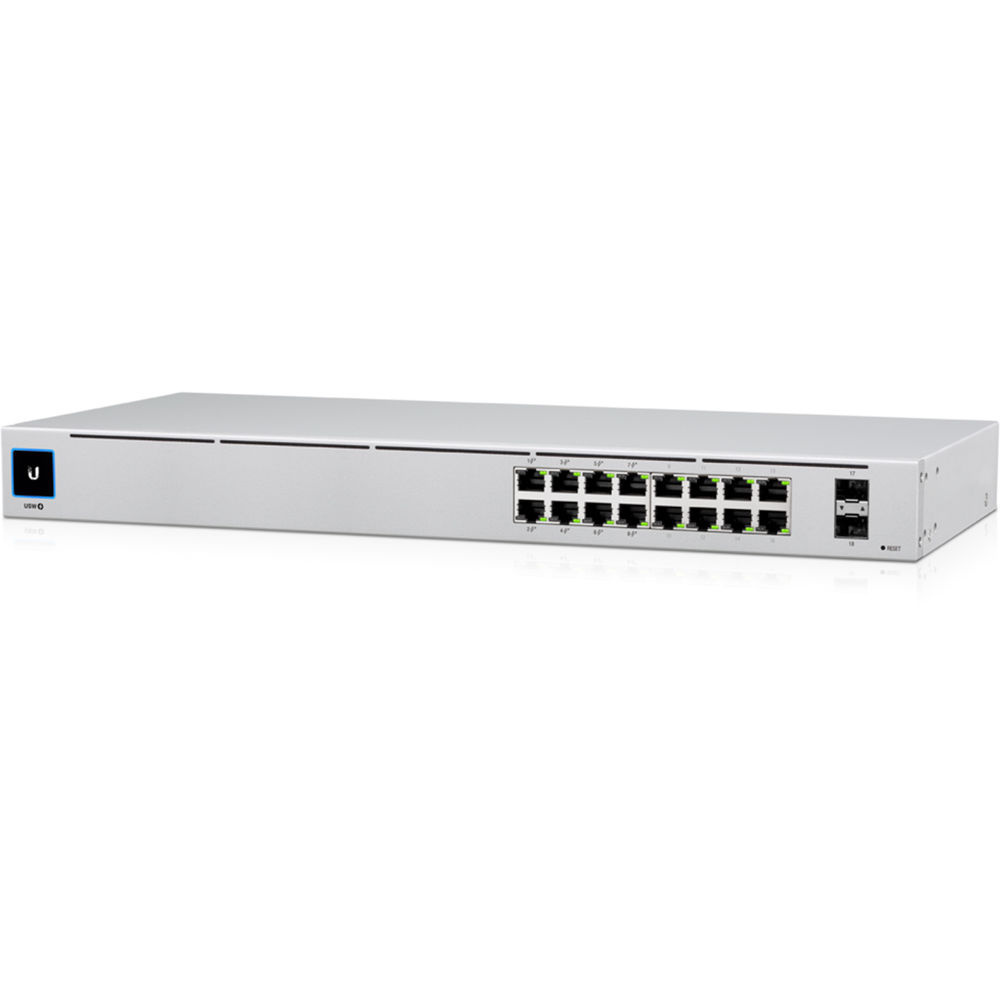

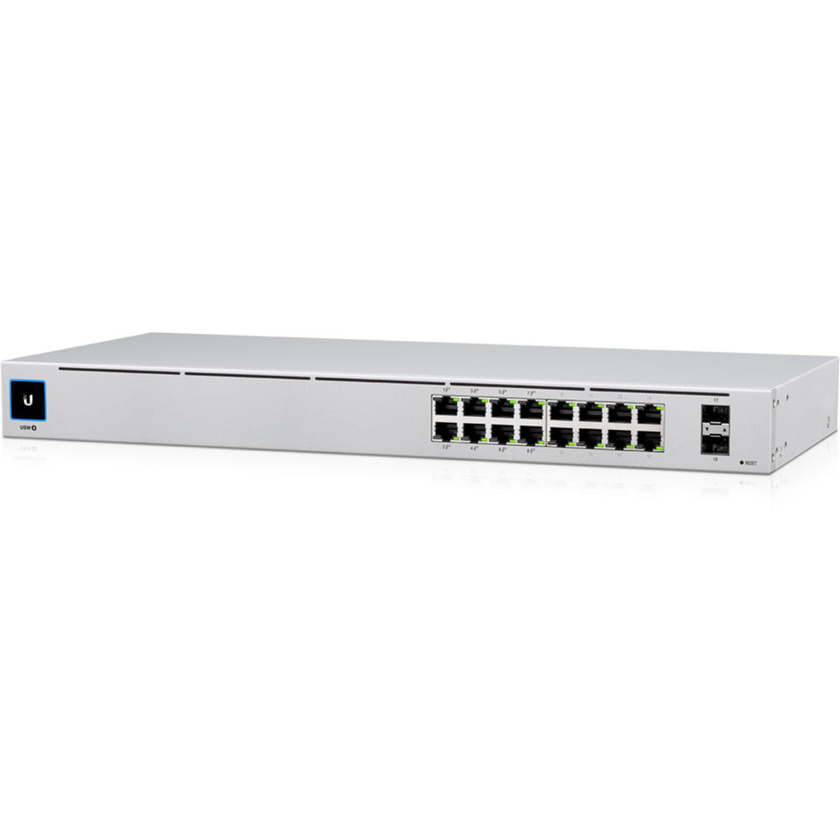

Ubiquiti Networks UniFi 16-Port Gigabit PoE+ Compliant Managed Switch with SFP

Product #107779 | SKU USW-16-POE | Ubiquiti
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $679
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $14 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • 16 x Gigabit Ethernet Ports
  • 8 x PoE+ Compliant Ports
  • 2 x Gigabit SFP Ethernet Ports
  • 36 Gb/s Switching Capacity
  • 26.78 Mpps Forwarding Capacity
  • Rack-Mountable Design

Description

The Ubiquiti Networks UniFi 16-Port Gigabit PoE+ Compliant Managed Switch with SFP is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including 8 x auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fibre uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Key Features
  • 8 Ports Auto-Sensing IEEE 802.3af/at PoE
  • SFP Ports for Gigabit Fibre Connectivity
  • Fanless, Silent Thermal Cooling
  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support

Specifications

Inputs/Outputs 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
2 x 10/100/1000 Mb/s Gigabit SFP (Uplink)
Protocols
Supported Protocols Auto-MDIX/MDI
Port Mirroring
Transmission Method Store-and-Forward
Standards
Supported IEEE Standards 802.3af, 802.3at
Performance
Forwarding Rate 26.78 Mpps
Switching Bandwidth 18 Gb/s (Non-Blocking)
Computer
OS Compatibility macOS 10 or Later
Windows 7 or Later
Linux
*As of March, 2020: Cheque with manufacturer for the most up-to-date compatibility
Electrical
Power Draw 18.00 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 42 W
PoE per Port 32 W
Power Supply Type Internal
Environmental
Operating Temperature 27 to 72°F / -5 to 40°C
Operating Humidity 10 to 90%
General
Certifications COE, FCC, IC
*as per Manufacturer
Cooling System Passive
Indicator Lights Link/Activity, Link/Activity/Speed, PoE, Status
Rack Form Factor 1 RU
Dimensions 17.42 x 7.87 x 1.72" / 442.4 x 200 x 43.7 mm
Weight 6.17 lb / 2.8 kg

In The Box

  • Ubiquiti Networks UniFi 16-Port Gigabit PoE+ Compliant Managed Switch with SFP
  • Power Cord
  • Rack-Mount Brackets
  • Bracket Screws
  • Mounting Screws
  • Cage Nuts
