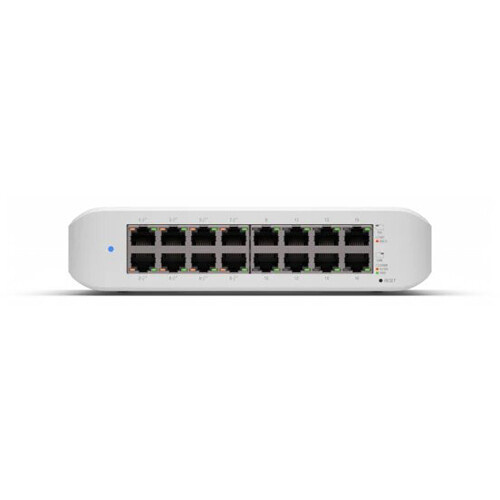

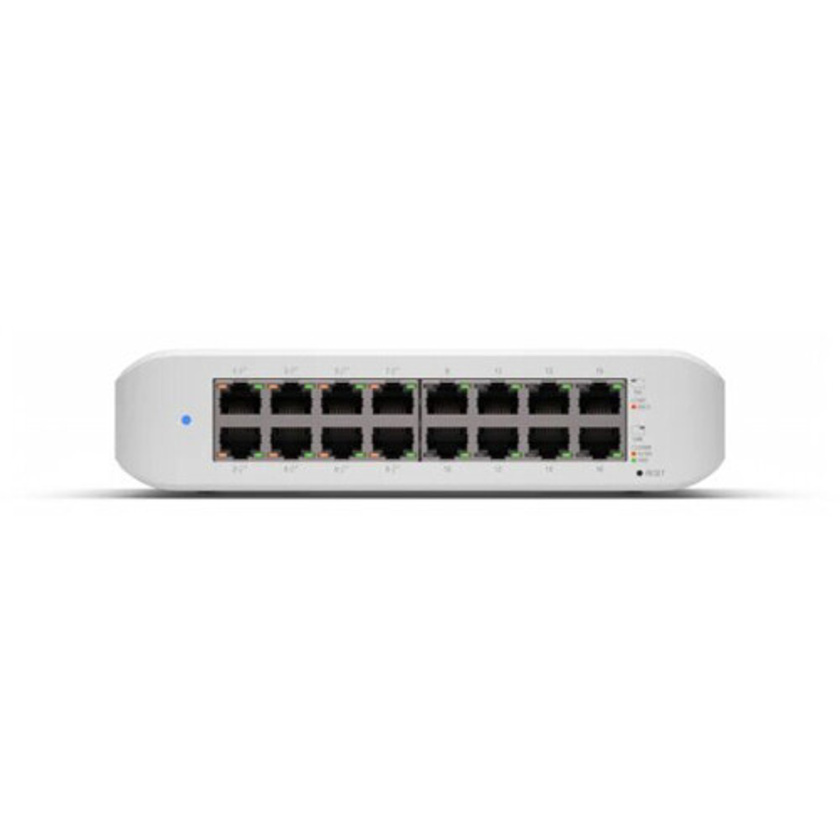

Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch

Product #107789 | SKU USW-Lite-16-POE | Ubiquiti
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $499
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $9.90 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • 16 x Gigabit Ethernet Ports
  • 8 x PoE+ Compliant Ports
  • 16 Gb/s Switching Capacity
  • Desktop & Wall Mountable Design
  • 45W Power Budget
  • Includes Wall Mounting Kit

Description

The Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices.

Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Key Features
  • (16) Gigabit RJ45 ports including (8) 802.3at PoE+
  • Managed by UniFi Controller
  • 60W internal power supply
  • Wall-mountable (Kit included)

Specifications

Interfaces
Inputs/Outputs 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
Protocols
Layer Services Supported Layer 2 Support
Standards
Supported IEEE Standards 802.3af, 802.3at
Performance
Switching Bandwidth 16 Gb/s
Electrical
Power Draw 15.00 W (Max)
DC Input Power 50 to 57 VDC
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 45 W
PoE per Port 30 W
Power Supply Type Internal
Environmental
Operating Temperature 5 to 104°F / -15 to 40°C
Operating Humidity 10 to 90%
General
Cooling System Passive
Indicator Lights Link/Activity/Speed, PoE
Dimensions 7.5 x 7.3 x 1.7" / 191.7 x 185 x 43.7 mm
Weight 2.6 lb / 1.2 kg

In The Box

  • Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch
  • Power Cable
  • Wall Mounting Kit

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch
  • Manufacturer: Ubiquiti
  • Model: USW-Lite-16-POE
  • SKU: USW-Lite-16-POE
  • RM Product #: 107789
