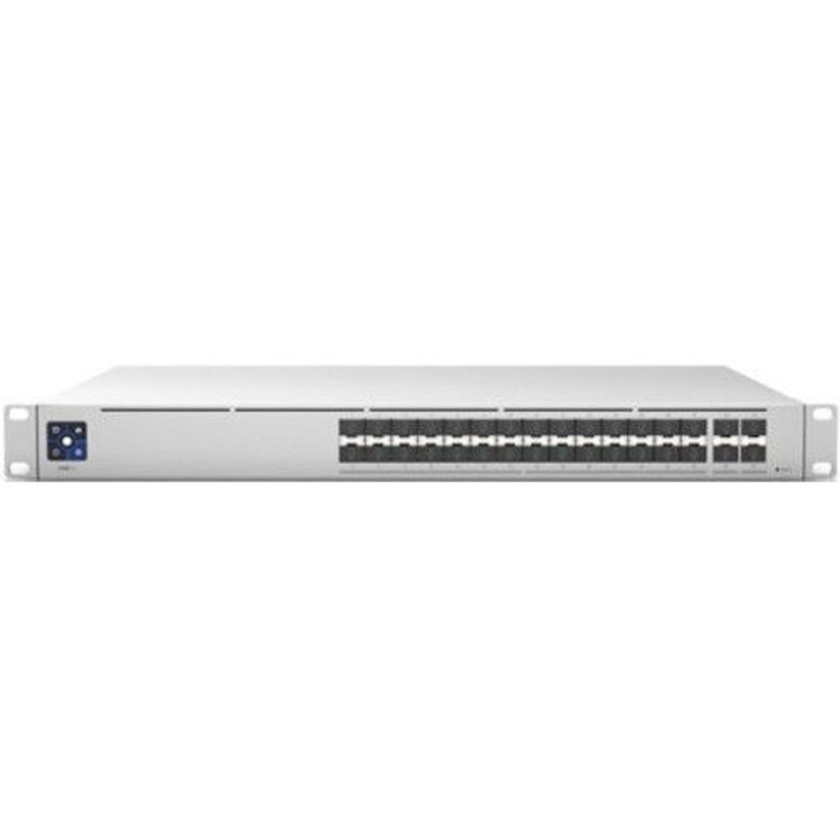

Ubiquiti Networks UniFi Switch Pro Aggregation 28-Port 10G SFP+ Managed Switch with SFP28

Product #107138 | SKU USW-Pro-Aggregation | Ubiquiti
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $1,955.54
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • 28 x 10G SFP+ Ports
  • 4 x 25G SFP28 Ports
  • 760 Gb/s Switching Capacity
  • 565.44 Mpps Forwarding Rate
  • Rack-Mountable Design
  • 1.3" Touchscreen

Description

The Ubiquiti Networks UniFi Switch Pro Aggregation 28-Port 10G SFP+ Managed Switch with SFP28 is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Key Features
  • 28 x 10G SFP+ Ports
  • 4 x 25G SFP28 Ports
  • 760 Gb/s Switching Capacity
  • 565.44 Mpps Forwarding Rate
  • Rack-Mountable Design
  • 1.3" Touchscreen

Specifications

Interfaces
Inputs/Outputs 28 x 10Gb SFP+ (Console)
4 x 25 Gb/s SFP28 (Uplink)
Protocols
Layer Services Supported Layer 3 Support
Supported Protocols Link Aggregation
Port Mirroring
Performance
Forwarding Rate 565.44 Mpps
Switching Bandwidth 760 Gb/s
380 Gb/s (Non-Blocking)
Electrical
Power Draw 100.00 W
DC Input Power 11.5 VDC at 8.7 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2 A
Power Supply Type Internal
Environmental
Operating Temperature 23 to 104°F / -5 to 40°C
Operating Humidity 10 to 90%
General
Cooling System Passive
Material of Construction Steel
Indicator Lights Link/Activity
Rack Form Factor 1 RU
Dimensions 17.4 x 12.8 x 1.7" / 442 x 325 x 44 mm
Weight 10.1 lb / 4.6 kg

In The Box

  • Ubiquiti Networks UniFi Switch Pro Aggregation 28-Port 10G SFP+ Managed Switch with SFP28
  • Power Cable
  • Rackmount Brackets
  • M4 Screws
  • M5 Screws
  • M5 Screw Anchors
  • Square
  • SFP+ Cable
