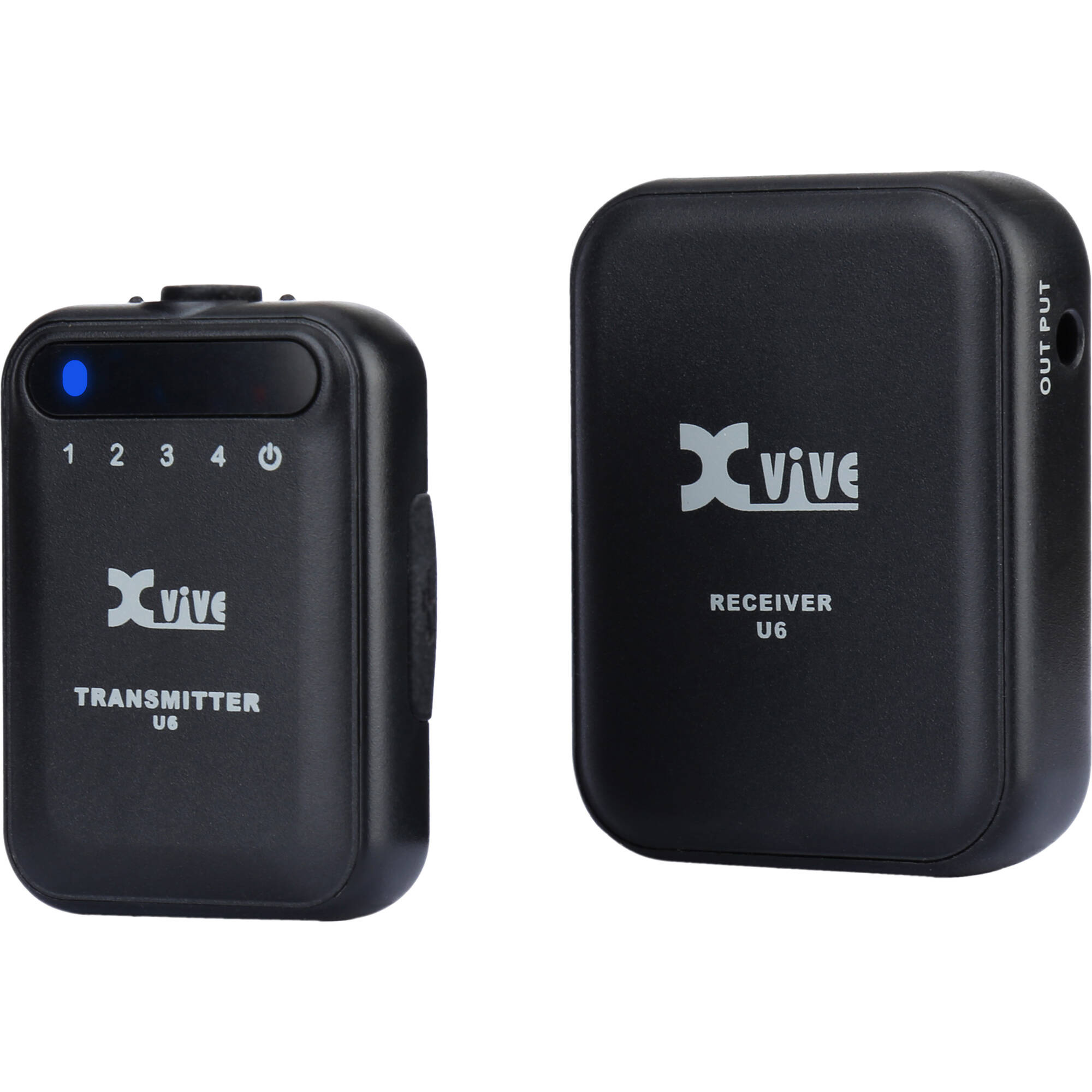

Xvive Audio U6 Compact Digital Wireless Microphone System for Cameras and Smartphones (2.4 GHz)

Product #97251 | SKU U6 | Xvive Audio
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Clip-On Transmitter with Built-In Mic
  • Compact Camera-Mount Receiver
  • Connects to Cameras, iOS/Android Devices
  • Omnidirectional Pickup Pattern

Description

The Xvive Audio U6 Compact Digital Wireless Microphone System is the perfect audio solution for video creators on the go! The transmitter has a high-quality built-in microphone and can be attached either under or on top of your clothing, using your choice of the included clip, or hook and loop fasteners. The receiver connects in seconds to your DSLR or smartphone.

The sound is top-notch, with 24-bit / 48 kHz digital audio, extremely low noise and only 5 ms of latency. The wireless connection is rock solid over a range of 90' / 27.4 m line-of-site, thanks to the system's four channels and the receiver's True Diversity design.

Key Features:

  • High-fidelity, ultra-compact wireless audio system for DSLR/video cameras and smartphones
  • Transmitter can be either hidden or visible, with both clip and hook+loop mounting modes
  • Receiver has a shoe mount for connections to DSLR cameras; TRS to TRRS adapter included for connections to smartphones
  • Comes with transmitter, receiver, audio cable, dual USB charger cable, transmitter clip and hook+loop fasteners, furry windshield and carry pouch
Now You See It…

The U6 was designed for versatility! You can wear the transmitter in four different ways: two visible and two hidden. If you want to show off your U6, use either the clip or the hook and loop fasteners to attach the transmitter on top of your clothing.

Now You Don't

If you prefer a clean on-camera look, use the system’s hook and loop fastener mode to hide the transmitter under a jacket or shirt—or simply use the clip and tuck the unit on the underside of your clothing.

Make Connections

The U6 receiver is fitted with a shoe mount which allows it to sit comfortably atop your DSLR. The supplied audio cable sends the sound from the receiver to the camera. Just slide it in, plug it in and turn it on!

Smart Solution

Connecting to a smartphone is also a breeze, provided you have any necessary adapter that bridges from a 1/8”/3.5 mm plug (the TRS to TRRS adapter, included with the U6) to your phone’s input. The receiver is so small and light that it can be mounted to the back of your phone (or a tripod) using the supplied hook and loop fasteners, or even a piece of tape.

Your True Voice

Despite its small size, light weight, and low price, the U6 system doesn’t scrimp on sound! The signal is high-resolution 24-bit / 48 kHz digital audio—with wide dynamic range, low noise, low distortion and a broad frequency response.

Send a Strong Signal

U6 broadcasts a stable wireless signal on the 2.4 GHz band, over an astonishing 90-foot (27.4 m) LOS range. The system has four channels to choose from, and the True Diversity receiver has two antennas instead of one—ensuring a solid connection every time, even with other wireless devices in the area! The latency is imperceptible at only 5 ms, so your voice and your lips will always be in sync.

Charge Ahead

Charging the U6 system is a breeze. Simply connect the included dual USB cable to any 5V USB power source, plug in the transmitter and receiver, and both will be charged in two hours. A full charge gives you four hours of uninterrupted wireless audio!

Specifications

System
Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Clip-On with Microphone
Diversity True Diversity
RF Frequency Band 2400 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 27.4 m (Line of Sight)
Max Transmitters per Band 4
Built-In Recorder No
Sample Rate/Resolution 48 kHz / 24-Bit
Latency 5 ms
Dynamic Range 100 dB
Encryption None
SNR 100 dB
THD 0.2 %
Receiver
Receiver Type Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 2 x 1/4 Wave Sleeve Dipole, Fixed
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output
Gain Range -20 to 0 dB (10 dB Steps)
Frequency Response 80 Hz to 20 kHz
USB/Lightning Connectivity 1 x Micro-USB Female (Charging)
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable
Internal Battery Capacity 420 mAh
Battery Charging Time 2 Hours
Approx. Battery Life 4 Hours
DC Input Power 5 VDC at 1A
Dimensions 39 x 14 x 50 mm
Weight 29 g
Transmitter
Transmitter Type Clip-On with Microphone
RF Output Power 10 mW (EIRP)
Audio I/O None
Auto-Level Control No
Sync Method Proprietary
Antenna 1 x 1/4 Wave Sleeve Dipole, Fixed
Approximate RF Sensitivity -92 dBm
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable
Internal Battery Capacity 330 mAh
Battery Charging Time 2 Hours
Approx. Battery Life 4 Hours
USB/Lightning Connectivity Micro-USB (Charging)
Dimensions 30 x 13 x 43 mm
Weight 18 g
Microphone
Microphone Type Integrated
Sound Field Mono
Polar Pattern Omnidirectional
SNR 100 dB
Sensitivity -32 dB

In The Box

  • Xvive Audio U6 Compact Digital Wireless Microphone System for Cameras and Smartphones (2.4 GHz)
  • Camera-Mount Receiver
  • Clip-On Transmitter
  • Clip for Transmitter
  • Xvive Audio H2 Hook-and-Loop Adhesive Fasteners
  • Fur Windshield
  • 3.5mm TRS Cable for Cameras
  • 3.5 TRRS Adapter Cable for Phones
  • USB Dual-Charging Cable
  • Pouch

Reviews

0.0 (no ratings yet)

Details

  • Product: Xvive Audio U6 Compact Digital Wireless Microphone System for Cameras and Smartphones (2.4 GHz)
  • Manufacturer: Xvive Audio
  • Model: U6
  • SKU: U6
  • RM Product #: 97251
  • Battery: Lithium-Ion Included
