teenage engineering CM-15 Field Condenser Microphone

Name: teenage engineering CM-15 Field Condenser Microphone
Brand: Teenage Engineering
SKU: 105270
Price: 2159.00 NZD
Availability: InStock

Product #105270 | SKU CM-15 | Teenage Engineering

| Write a review

In stock Ships Monday

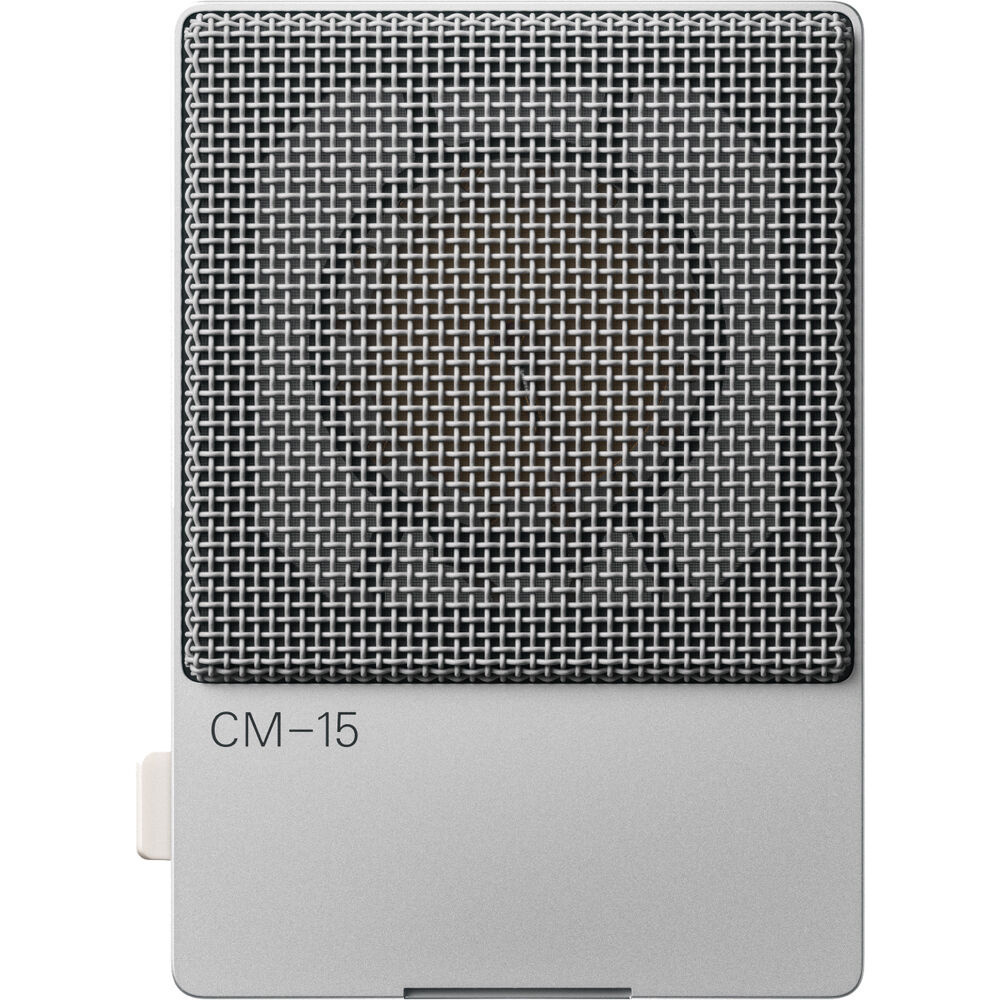

teenage engineering CM-15 Field Condenser Microphone

Our Price $2,159

In stock Ships Monday

Request price match

Talk to our experts

Shipping & Availability

Ships Monday. Deliver to Auckland for $4^.90 Change location

Click & Collect

Check availability

Features

Studio-Quality Supercardioid Condenser
1" Large-Diaphragm Capsule
48V Phantom Power Compatible
Pseudo-Balanced Mini-XLR Output
Dual-Mono 3.5mm Line Output
Built-In SABRE AD Convertor

Description | Specifications | In The Box

Description

The teenage engineering CM-15 Field Condenser Microphone is aportable large-diaphragm condenser microphone and the first all-in-one mic offering a combination of 48v phantom powered mini xlr, usb-audio interface and preamp, 3.5 mm line output, and battery power. included in the box: textile mini-xlr to xlr and usb-c cables, mic stand adapter (1/4"-20 and 3/8"-16 UNC mount), protective pouch, and user guide.

Features

1-inch diaphragm capsule, manufactured by peluso
ESS sabre ES9822Q PRO analog-to-digital converter
OPA 140 JFET amplifier stage with ultra low distortion
flexible powering system with 10 hour rechargeable battery
built-in table stand
dimensions: 90 mm x 65.5 mm x 19 mm
weight: 132 g / 54.6 oz

Specifications


Microphone
Primary Applications	Live Sound, Studio Recording, Recording to Mobile Device, Audio for Video, Location Sound, Field Recording
Form Factor	Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources	Vocals, Speech/Voice Over, Acoustic Guitar, Piano, Drums, Percussion, Beatbox
Sound Field	Mono
Operating Principle	Pressure Gradient
Capsule	1 x Condenser
Diaphragm	1" / 25.4 mm (Condenser)
Polar Pattern	Supercardioid
Orientation	Side Address
Circuitry	Solid-State
Pad	-18 dB
High-Pass Filter	None
Tone Adjustment	None
On-Board Controls	Pad
Windscreen	None
Performance
Maximum SPL	138 dB SPL Peak (.5% THD) 145 dB SPL Peak (1% THD)
Impedance	100 Ohms (Balanced)
Sensitivity	-45 dB / -27 dB / -9 dB
Signal-to-Noise Ratio	80 dB (at 1 Pa/94 dB SPL)
Equivalent Noise Level	14 dB
Connectivity
Analogue Output	1 x TA3M 3-Pin Male (on Mic) 1 x 1/8" / 3.5 mm TRS Female (on Mic)
USB & Digital Output	1 x USB-C Female
Headphone Output	None
Wireless Connectivity	None
Bluetooth	None
Wi-Fi	None
Digital Audio
OS Compatibility	None
Mobile App Compatible	No *As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility
Power
Bus Power	USB
Operating Voltage	48 V (Phantom Power)
Battery Type	1 x Built-In (Included)
Approximate Battery Life	10 Hours
Physical
Colour	Nickel
Mounting	Mic Clip/Stand Adapter (Included)
Mounting Thread Size	Included Mount Has No Threading (3/8"-16 Female, 1/4"-20 Female with Included Adapter)
Included Case	None
Included Filters	None
Dimensions	H: 3.5 x W: 2.6 x L: 0.7" / H: 90 x W: 65.5 x L: 19 mm
