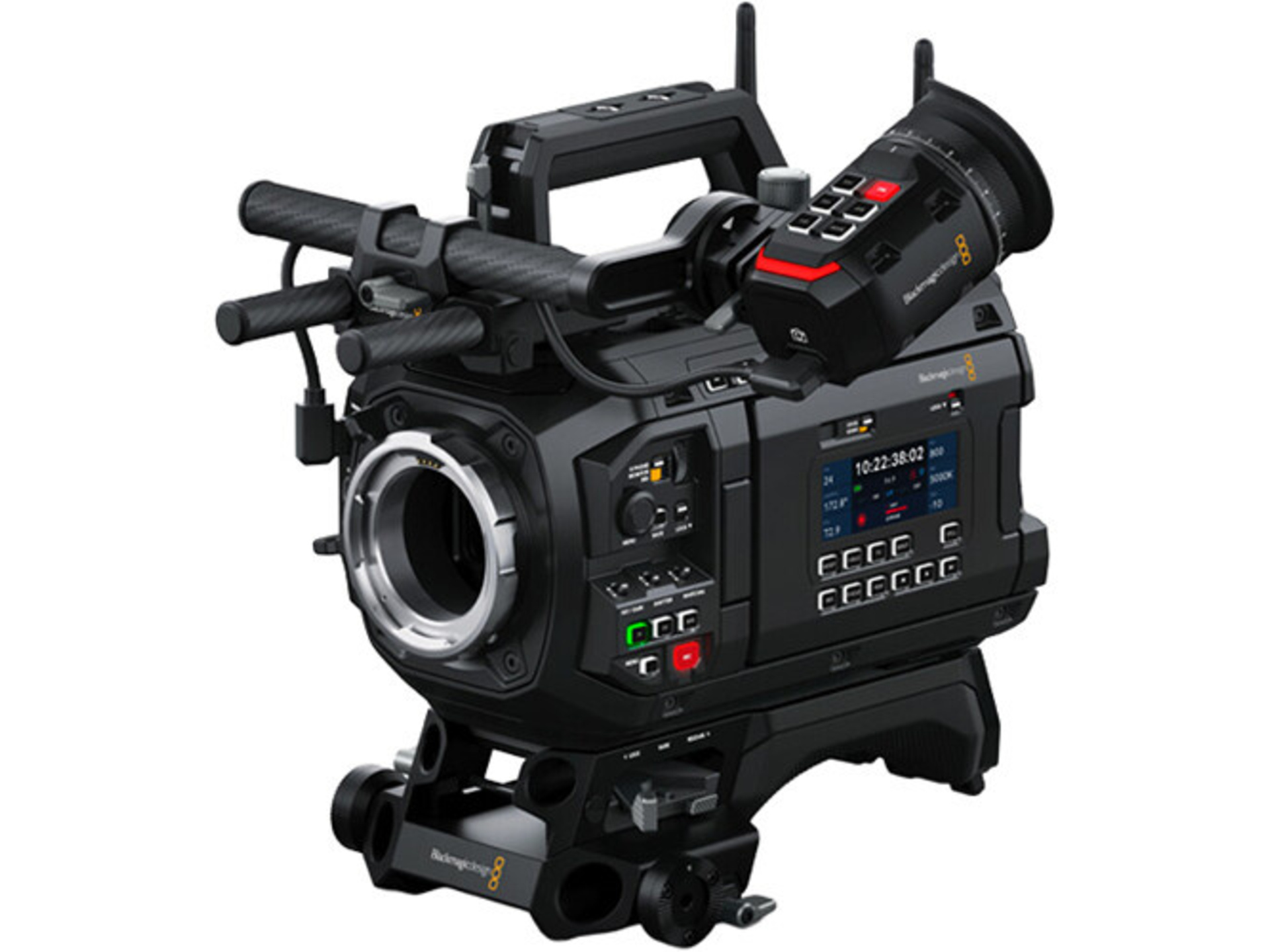

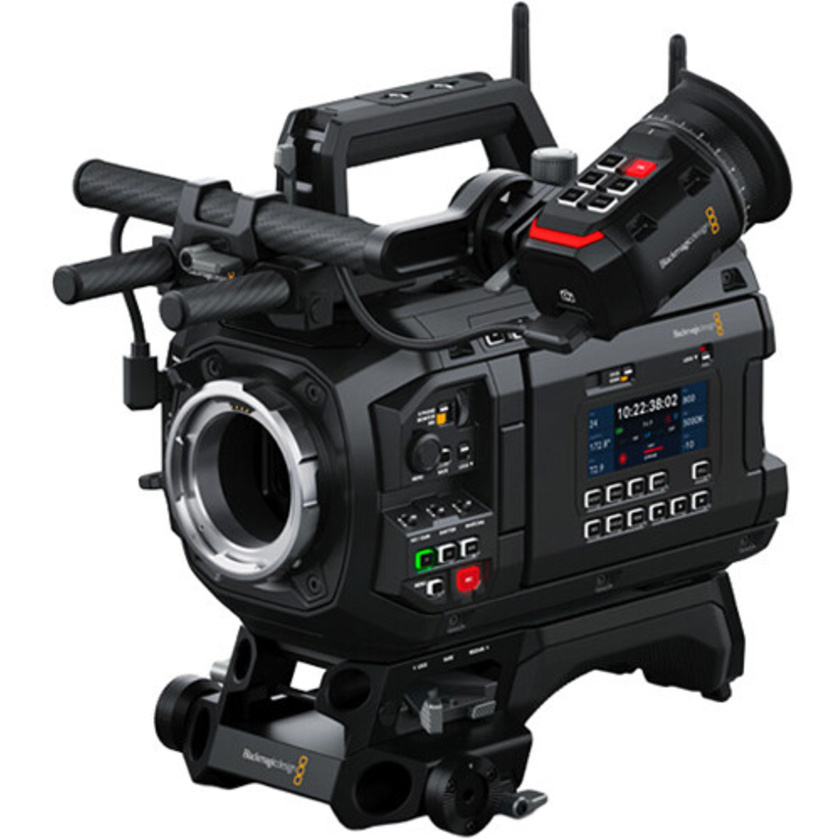

| Blackmagic Design URSA Cine 12K LF 100G Camera (ARRI PL, Canon EF) |
|
| Imaging |
|
| Lens Mount |
ARRI PL with Included Canon EF Adapter |
| Lens Communication |
Yes |
| Image Sensor |
35.64 x 23.32 mm (Full-Frame) CMOS |
| Effective Sensor Resolution |
98 Megapixel (12,288 x 8040) |
| Image Stabilisation |
Supplies Stabilisation Metadata |
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Built-In CC Filter |
No |
| Internal Filter Holder |
No |
| Capture Type |
Video Only |
| Exposure Control |
|
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| ISO/Gain Sensitivity |
Native: 200 to 3200 |
| Signal-to-Noise Ratio |
Not Specified by Manufacturer |
| Advertised Dynamic Range |
16 Stops |
| Focus |
|
| Focus Mode |
Automatic, Full-Time Servo, Manual Focus |
| Video Capture |
|
| Internal Recording |
Blackmagic RAW
12288 x 8040 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/80 fps (90 to 1432 MB/s)
9648 x 8040 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
12288 x 6912 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100 fps
12288 x 6480 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
7680 x 6408 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
9408 x 6264 up to 23.98/24.00/25/29.97/30.00/59.94/60.00/100 fps (54 to 856 MB/s)
8192 x 5360 up to 23.98/24.00/25/29.97/30.00/59.94/60.00/144 fps (40 to 533 MB/s)
6432 x 5360 up to 23.98/24.00/25/29.97/30.00/50/60.00 fps
12288 x 5112 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/120 fps
9312 x 4896 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
8688 x 4896 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
8192 x 4608 up to 23.98/24.00/25/29.97/30.00/59.94/60.00 fps
8192 x 4320 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
8192 x 3408 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/224 fps
4096 x 2680 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/144 fps (10 to 135 MB/s)
4096 x 2304 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
4096 x 2160 up to 23.98/24.00/25/29.97/30.00 fps
3840 x 2160 up to 23.98/24.00/25/29.97/30.00/50/60.00 fps
4096 x 1704 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080 up to 23.98/24.00/25/29.97/30.00/50/60.00 fps |
| Video Output |
via HDMI / SDI/BNC
3840 x 2160
1920 x 1080p |
| Fast-/Slow-Motion Support |
Slow-Motion Only |
| Built-In Microphone |
Stereo |
| Audio Recording |
2-Channel, 24-Bit at 48 kHz |
| IP Streaming |
RTMP, SRT
1920 x 1080 at 60p |
| Interface |
|
| Media/Memory Card Slot |
No |
| Internal Storage |
No |
| Video I/O |
1x RJ45 SMPTE 2110 Output
2x BNC (12G-SDI) Output |
| Audio I/O |
2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRRS Headphone/Mic Output |
| Power I/O |
1x LEMO 8-Pin (12 to 24VDC) Input
1x LEMO 7-Pin (12 to 24VDC) Output
1x Fischer 3-Pin (12 to 24VDC) Output |
| Other I/O |
2x USB-C (Camera Interface) Input/Output
1x USB-C (Firmware)
1x RJ45 (100 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output (Shared with Video Output)
1x BNC (Reference, Timecode) Data Input |
| Wireless |
Wi-Fi |
| Mobile App Compatible |
Yes: iOS Only
App Name: Blackmagic Camera Control
Functionality: Remote Control |
| Global Positioning (GPS, GLONASS, etc.) |
No |
| Monitor |
|
| Display Type |
Primary Monitor: Articulating 5" Touchscreen LCD
Status Display: Fixed Non-Touchscreen LCD |
| Resolution |
Primary Monitor: 1920 x 1080 |
| Power |
|
| Battery |
Built-In Lithium-Ion |
| Environmental |
|
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions |
-4 to 113°F / -20 to 45°C up to 90% Humidity |
| General |
|
| Shoe Mount |
No |
| Tripod Mount |
5x 3/8"-16 Female (Bottom)
4x 1/4"-20 Female (Bottom) |
| Accessory Mounting Thread |
3x 1/4"-20 on Camera Body
4x 3/8"-16 on Camera Body |
| Netflix Approved |
Yes |
| Materials |
Carbon Fibre, Magnesium Alloy |
| Dimensions (W x H x D) |
9.87 x 6 x 6" / 25.07 x 15.2 x 15.2 cm |
| Weight |
8.2 lb / 3.7 kg (Body Only) |
| Blackmagic Design URSA Cine EVF |
|
| Display |
|
| Panel Type |
OLED |
| Screen Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Colour Support |
16.2 Million Colours (6-Bit+FRC) |
| Optics |
|
| Dioptre Correction |
-5.0 to +5.0 |
| Inputs / Outputs |
|
| Inputs/Outputs |
1x USB-C 3.0 / 3.1/3.2 Gen 1 Camera Input |
| Video Format |
USB
DCI 4K: 60 |
| General |
|
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity |
| Tripod/Accessory Mounting |
Left
1x Accessory Rail |
| Dimensions |
21.13 x 7 x 3.5" / 536.7 x 177.8 x 88.9 mm |
| Weight |
3.5 lb / 1.6 kg |
