The HiLook NS-0310P-60 8 Port 10/100 Fast Ethernet Unmanaged POE Switch is a powerful and reliable switch that offers advanced PoE power supply technology. With 8x 100Mbps PoE ports and 2x 100Mbps Uplink ports, this switch provides stable data upload and supports long-range transmission. It also features MAC Address Auto Learning and 6 KV surge protection for the PoE ports. The switch is built with a solid high-strength metal shell and a fan-free design, ensuring durability and reliability. With its wire-speed forwarding and store-and-forward switching capabilities, this switch is an ideal choice for efficient network management.

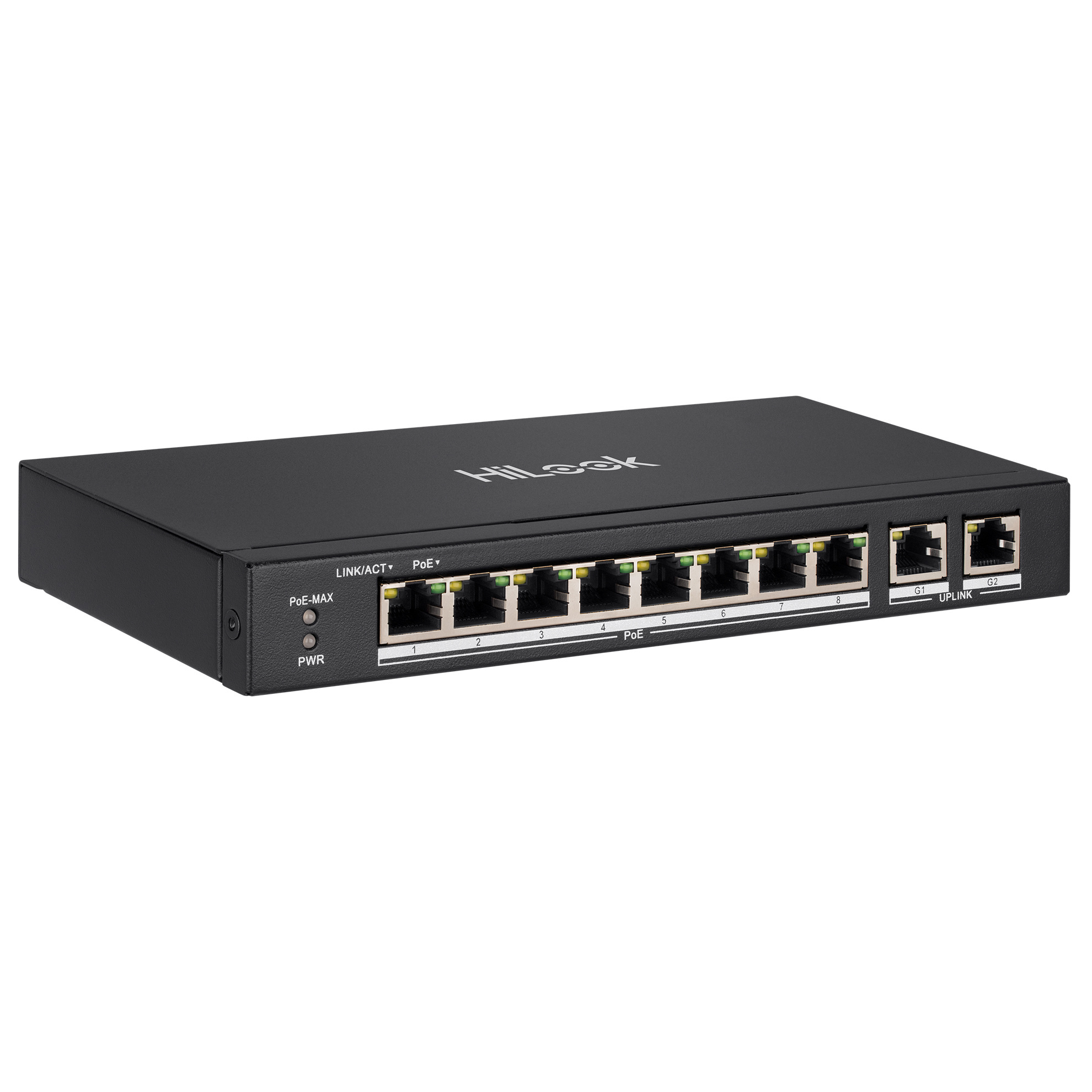

HiLook NS-0310P-60 8 Port 10/100 Fast Ethernet Unmanaged POE Switch
This product is no longer available
Features
- 8× 10/100Mbps PoE ports
- 2× Gigabit RJ45 port
- IEEE 802.3at/af standard
- 6 KV surge protection
- 250m long-range transmission
- Wire-speed forwarding
Description
Specifications
| Port number | 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default), Extend mode |
| Ports for long-distance transmission | Ports 1 to 8 |
| MAC address table | 16 K |
| Switching capacity | 5.6 Gbps |
| Packet forwarding rate | 4.1664 Mpps |
| Internal cache | 4 Mbits |
| PoE standard Ports | 1 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. |
| PoE port Ports | 1 to 8 |
| Max. port power | Ports 1 to 8: 30 W |
| PoE power budget | 60 W |
| Long range | Ports 1 to 8: up to 250 m |
| Shell | Metal material, fan-free design |
| Gross weight | 1.20 kg (2.65 lb) |
| Net weight | 0.555 kg (1.22 lb) |
| Dimension (L × H × D) | 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”) |
| Operating temperature | -10°C to 40°C (14°F to 104°F) |
| Storage temperature | -40°C to 85 °C -40°F to 185°F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidit | y 5% to 95% (no condensation) |
| Power supply | 48 VDC, 1.35 A |
| Power consumption in idle | < 5 W |
| Max. power consumption | 65 W |
| Power source | 65 W |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015) ; IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU) ; WEEE (2012/19/EU) ; Reach (Regulation (EC) No 1907/2006) |
In The Box
- HiLook NS-0310P-60 8 Port 10/100 Fast Ethernet Unmanaged POE Switch
Reviews
(no ratings yet)Details
- Product: HiLook NS-0310P-60 8 Port 10/100 Fast Ethernet Unmanaged POE Switch
- Manufacturer: HiLook
- Model: NS-0310P-60
- SKU: NS-0310P-60
- RM Product #: 109947
