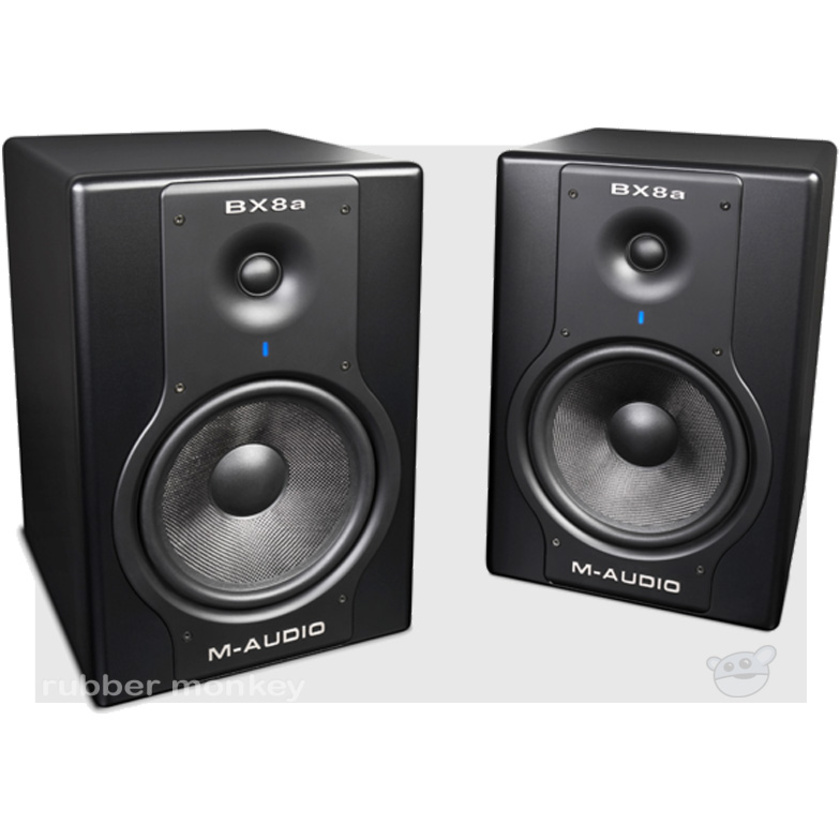

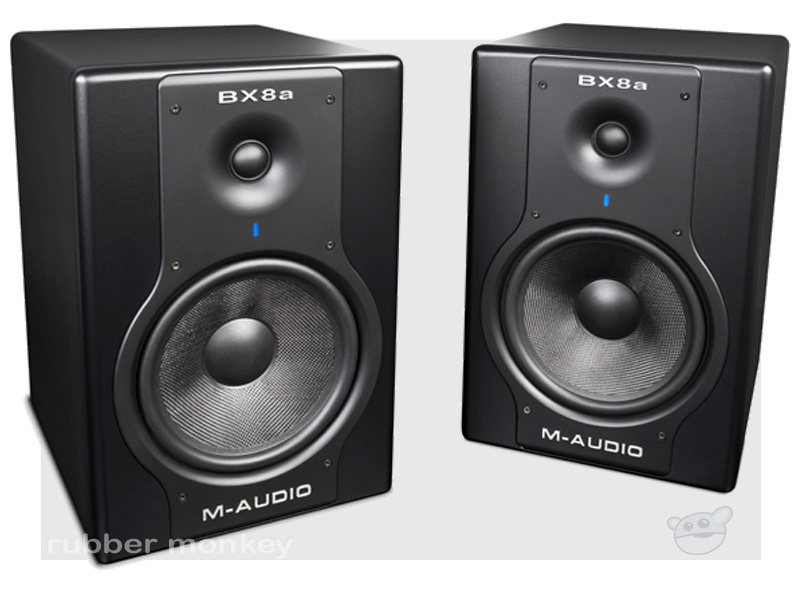

Recording professionals around the world trust M-Audio Studiophile™ reference monitors for exceptional sonic accuracy. The new Studiophile BX8a Deluxe system builds on this legacy with new waveguides and enhanced driver integration for greater high-frequency clarity and refined sound. The magnetically shielded monitors feature 8” curved Kevlar low-frequency drivers plus high-temperature voice coils and damped rubber surrounds for durability and fidelity. The 1-1/4” natural silk, waveguide-loaded tweeters deliver a high end that’s both clear and easy on the ears. Custom-tuned crossovers distribute 130 watts of bi-amplified power for optimal frequency handling by each driver.
Key Features:
- two-way studio reference monitors
- deluxe edition delivers extended high-frequency response and refined sound
- 130 watts of continuous bi-amplified power
8” low-frequency drivers with:
- curved Kevlar cones
- high-temperature voice coils
- damped rubber surround
1-¼” high-frequency drivers with:
- natural silk domes
- integrated waveguides
- magnetic shielding
- XLR balanced and ¼” balanced/unbalanced inputs
- volume control
- power indicator
Specifications:
- frequency response: 40Hz-22kHz
- crossover frequency: 2.2kHz
- low-frequency amplifier power: 70 watts
- high-frequency amplifier power: 60 watts
- maximum signal-to-noise (dynamic range): > 100dB (typical A-weighted))
- polarity: positive signal at + input produce outward LF cone displacement
- input impedance: 20k ohms balanced,10k ohms unbalanced
- input sensitivity: 85 mV pink noise input produces 90dBA output SPL at one meter with volume control at maximum
- power: factory programmed for either 115V ~50/60Hz or 230V ~50/60Hz
- protection: RF interference, output current limiting, over temperature, turn-on/off transient, subsonic filter, external mains fuse
- cabinet: vinyl-laminated MDF
- size: 30.48cm x 25.4cm x 38.1cm/unit
- weight: 11.97 kg per unit
