The Palmer PAN 01 Passive DI Box features jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

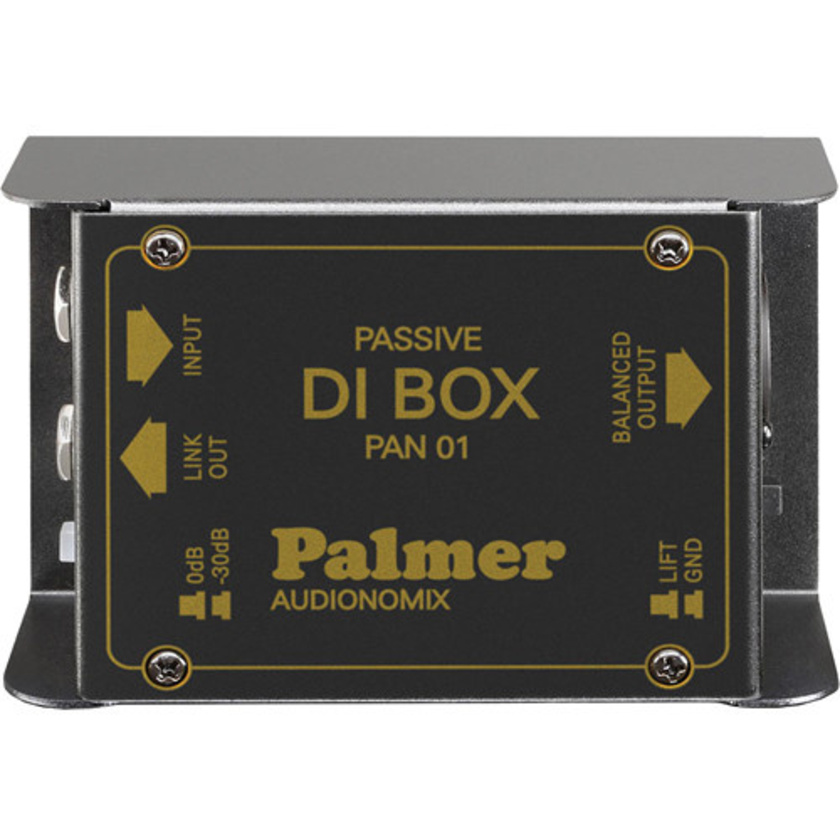

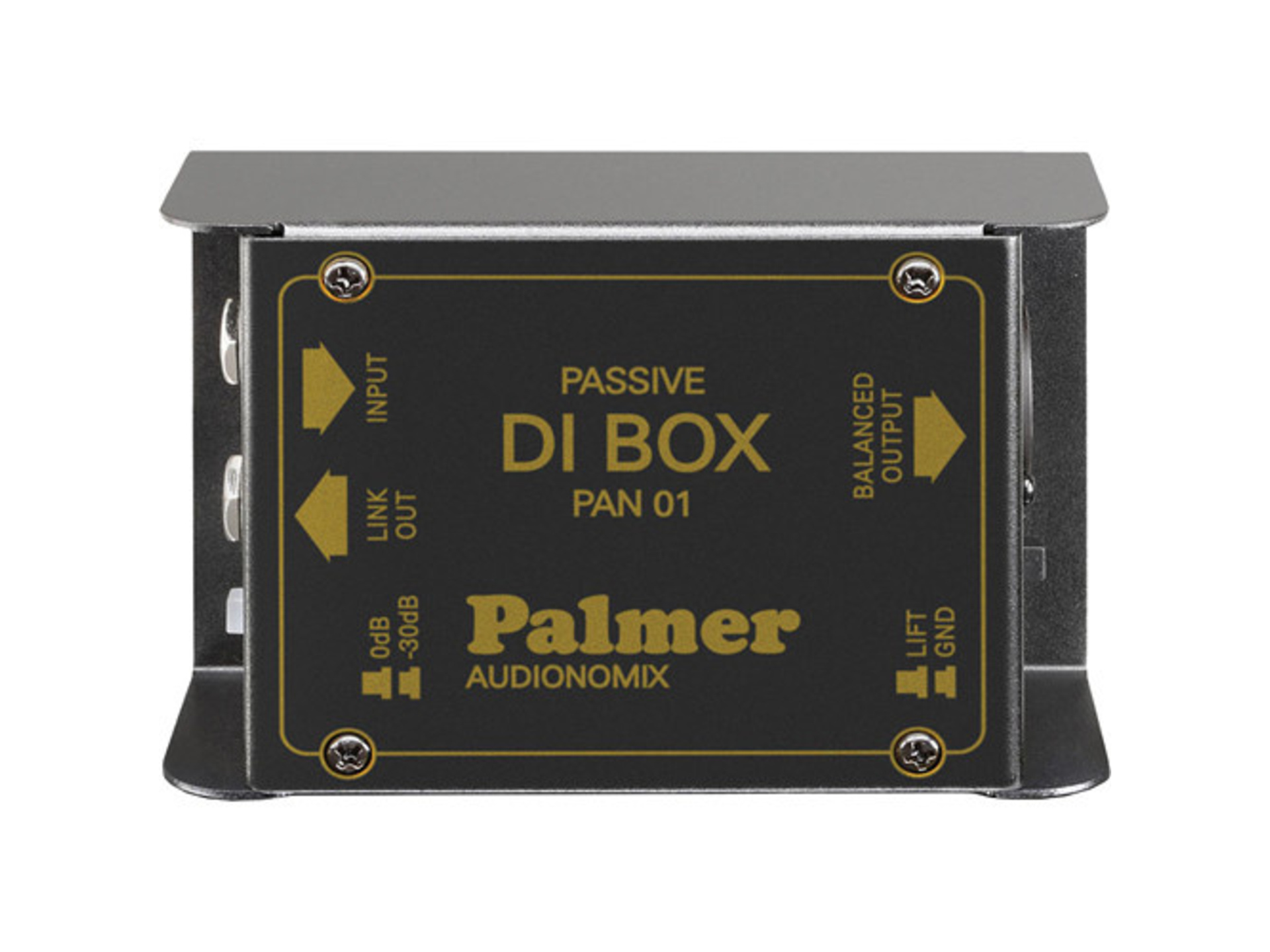

Palmer PAN 01 Passive DI Box
On Backorder ETA to be confirmed
$99
On Backorder ETA to be confirmed
Delivery Options
Calculate ShippingFREE Pickup
View stock availabilityEmail me when stock arrives
Have a question about this product?
Send us a message
Features
- Passive Direct Box
- 6.3mm Jack Input
Description
Specifications
| General | |
| Item Type | Standard DI |
| Number of Channels | Single-Channel |
| Active/Passive | Passive |
| Circuitry | Solid-State |
| Preamp | |
| Pad | Yes |
| Ground Lift | Yes |
| Polarity Reverse | No |
| AEQ & Tone Shaping | |
| Low-Cut/High-Pass Filter | No |
| Connectivity | |
| Audio I/O | 1x 1/4" TS Unbalanced Input 1x 1/4" TS Unbalanced Thru 1x XLR 3-Pin Balanced Output |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum Input Level | +54 dBu |
| Input Impedance | 60 Kilohms |
| Power | |
| Operating Voltage | No Power Required |
| Physical | |
| Dimensions | 4.3 x 2.87 x 1.6" / 110 x 73 x 42 mm |
| Weight | 0.74 lb / 0.34 kg |
In The Box
- Palmer PAN 01 Passive DI Box
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Palmer PAN 01 Passive DI Box
- Manufacturer: Palmer
- Model: PAN01
- SKU: PAN01
- RM Product #: 122580
