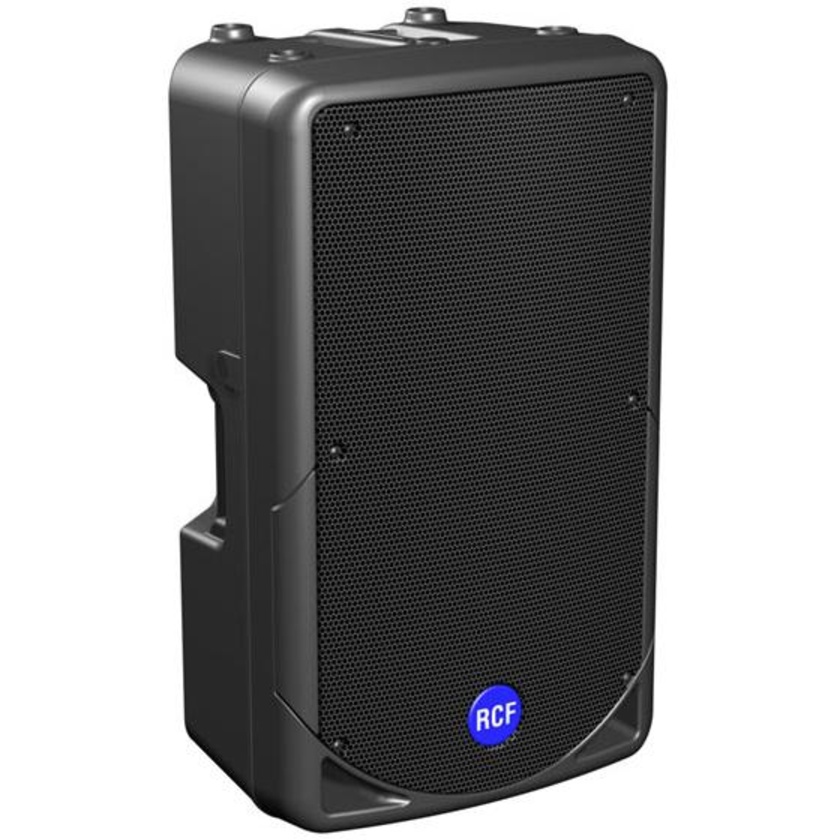

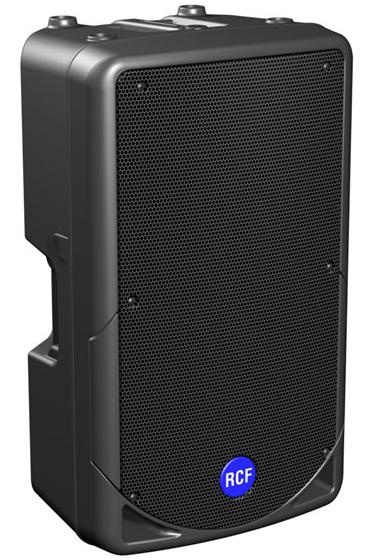

ART 315-A is the perfect speaker for live sound situations where extra vocal punch and extremely accurate high frequency response is needed.
The 15” woofer delivers a very tight punchy bass and an accurate reproduction of the midrange . The high frequencies are precise and natural thanks to the compression driver with mylar dome in front of a low compression, optimised geometry, radial phase plug. Thanks to the versatility in both monitoring and playback, it represents the ideal multipurpose solution.
Key Features
- 350 Watt bi-amplification
- 128 dB max spl
- 90 x 60, Wide dispersion constant directivity horn
- 15" woofer, high power 2.5" voice coil
- 1" HF driver, mylar dome, neodymium 1.5" voice coil
Specifications
| Frequency Response |
50 Hz to 20 kHz |
| SPL |
Maximum 128 dB |
| Coverage Angle |
90 x 60° |
| Driver |
Compression: 1.00" (25.40 mm) neo |
| Woofer |
15.0" (381.0 mm) Edge Wound Aluminum Coil: 2.51" (64.00 mm) |
| Power Handling |
300 W |
| Input Signal |
Bal / Unbal |
| Input Connector |
XLR |
| Output Signal |
Connector: Speakon |
| Crossover Frequencies |
1,800 Hz |
| Protection |
Electronic |
| Cabinet |
Composite PP |
| Hardware |
Rigging Inserts: 4 M10 fly points and built-in pole mount adapter |
| Handle |
2 side, 1 top |
| Total Power |
350W RMS |
| Dimensions (H x W x D) |
26.77 x 15.94 x 13.58" (680.00 x 405.00 x 345.00 mm) |
| Weight |
37.48 lb (20.00 kg) |
