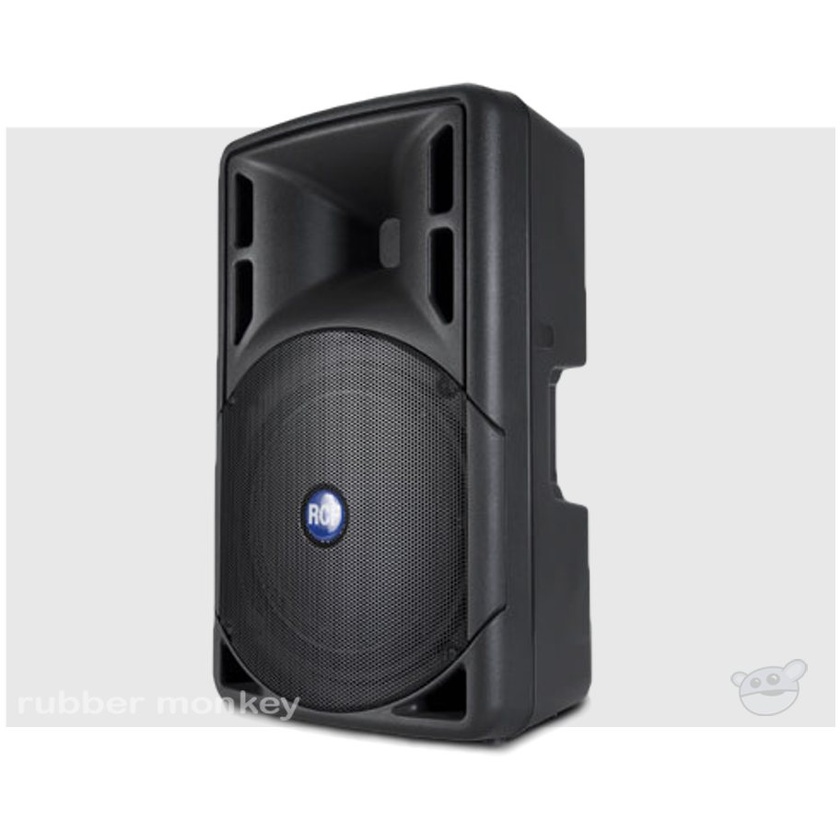

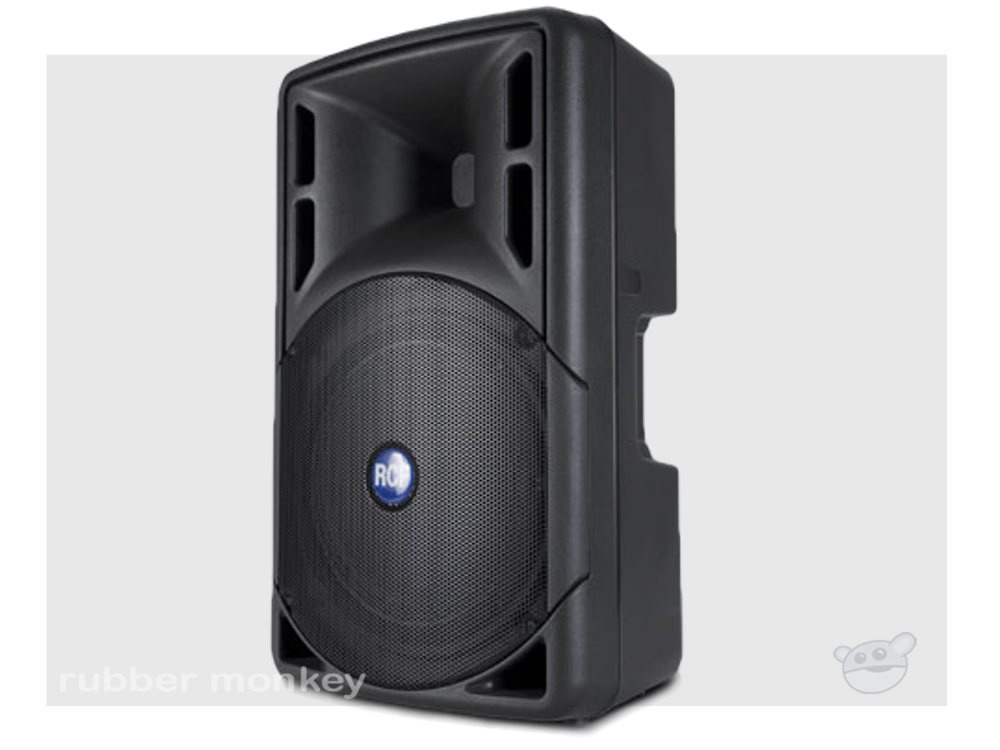

ART 312-A is the optimum choice for live sound situations where an exceptional full range, outstanding bass reproduction and accurate high frequency delivery is required.
The 12” woofer delivers a fast and accurate reproduction of the midbass frequency range and controlled deep bass while the 1” compression driver offers a very open and natural midrange sound and extreme precision high frequencies reproduction.
Product Features and Applications:
- 350 Watt bi-amplification
- 127 dB max spl
- 90 x 60, Wide dispersion constant directivity horn
- 12" woofer, high power 2.5" voice coil
- 1" HF driver, mylar dome, neodymium 1.5" voice coil
- Live sound
- Playback and stage monitoring
- Corporate events
- AV presentations
Technical Specifications:
- Frequency Response -3 dB:50 Hz ÷ 20 kHz
- Max SPL:127 dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Compression Driver:1" neo, 1.5" v.c.
- Woofer:12", 2.5" v.c.
- Input signal:bal / unbal
- Input connectors:xlr
- Output connectors:xlr
- Input sensitivity:0 dBu
- Mic. Input Sensitivity:-40
- Crossover frequencies:1800 Hz
- Protections:DC / short cir.
- Limiter:Fast limiter
- Controls:Volume
- Total power:350 W
- High frequencies:50 W
- Low frequencies:300 W
- Cooling:Convection
- Connections:VDE conncector in
- Cabinet Material:Composite PP
- Hardware:4xM10 flying p.
- Handles:2 side, 1 top
- Pole Mount/Cap:Yes
- Colour:Black
- Height: 680mm
- Width: 405mm
- Depth: 345mm
- Net Weight: 19.0kg
