RCF Ayra Pro10 Sub Active 10" Reference Subwoofer has been discontinued, here are some related products you might like:

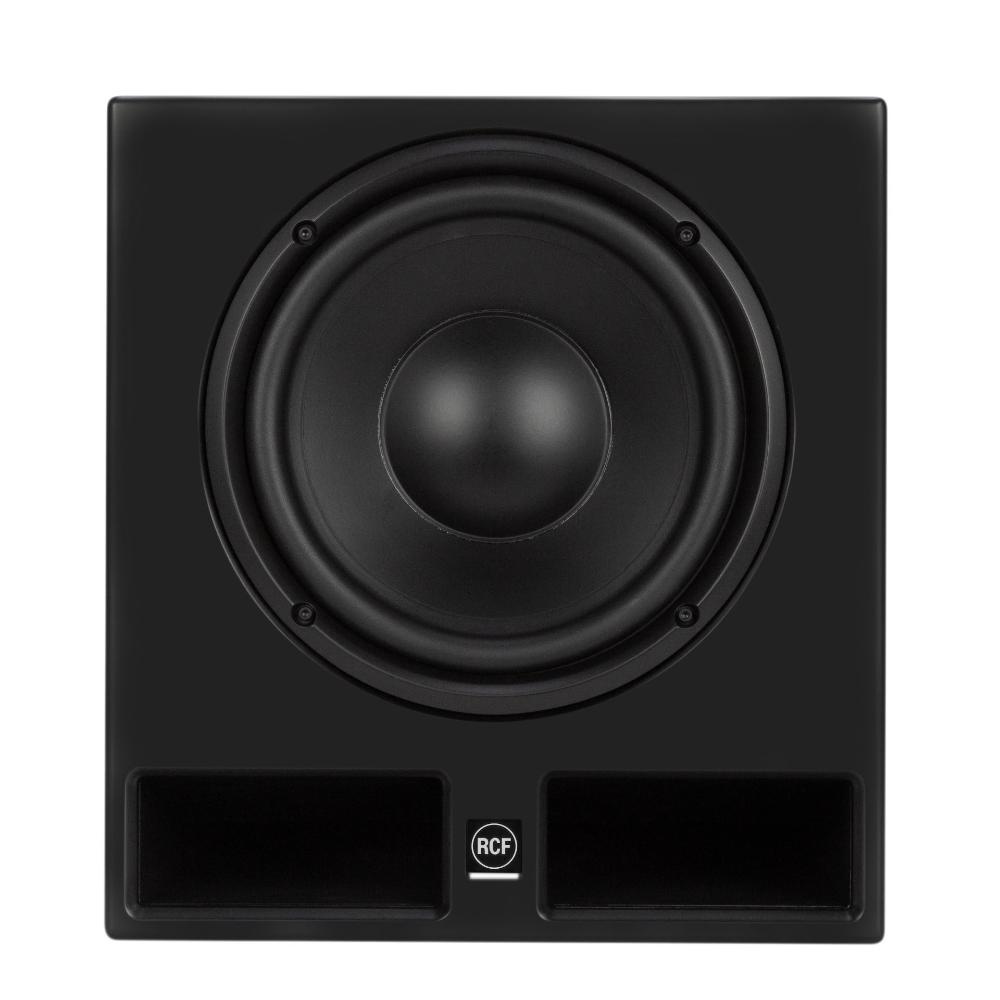

RCF Ayra Pro10 Sub Active 10" Reference Subwoofer

Product #103753 | SKU 13000608 | RCF
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • True active 300 W RMS class D power amplifier
  • 10" composite fibre woofer
  • 30 hz – 120 hz frequency response
  • Stereo input board, stereo x-over output
  • Low turbulence frontal bass reflex port
  • Variable 2nd order crossover from 50 to 120 hertz

Description

The RCF Ayra Pro10 Sub Active 10" Reference Subwoofer is an active reference subwoofer designed for AYRA PRO studio monitors, also suitable for low-frequency extension on third-party audio systems. With tight and accurate bass reproduction it's ideal for audio recording, mixing, multichannel systems, desktop use, and other creative applications.

Pairing the AYRA PRO10 SUB with RCF studio monitors delivers an optimized monitoring experience with extended headroom and powerful low-end. With 300 Watts RMS Class-D Amplifier, frequency range from 30 up to 120 Hz and a variable 2nd order crossover from 50 to 120 hertz, you have enough power for any mixing room size. The bypass footswitch disables the high-pass crossover and mutes the subwoofer, providing full range audio to the monitors without switching off the subwoofer.

The advanced vented port is a proprietary solution that helps to achieve a good aerodynamic behavior of the air (laminar), gaining efficiency and reducing distortion.

Complete range of analog connectors and controls on the rear panel let you master your monitoring system at its best. The low-frequency behavior of the system is managed carefully with a variable crossovered output for stereo monitors. The low turbulence frontal bass reflex port allows for the best placement flexibility.

Specifications

  • Frequency Response | 30 Hz ÷ 120 Hz
  • Max SPL @ 1m| 120 dB
  • Woofer| 10'', 2.5'' v.c
  • Input signal| bal/unbal
  • Input connectors| XLR, Jack, RCA
  • Output connectors| XRL Stereo
  • Input sensitivity| 0 dBu
  • Hi-Pass Frequencies| Selectable 50-120Hz
  • Limiter| Soft Limiter
  • Controls| Level -inf./0dB
    Selectable High-pass filter 50-120Hz
    Bypass footswitch
    0°/180° phase selector
  • Total Power| 600 W Peak, 300 W RMS
  • Low frequencies| 600 W Peak, 300 W RMS
  • Connections| XLR, Jack, RCA
  • Safety agency| CE compliant
  • Cabinet/Case Material| MDF
  • Colour| Black - RAL 9005
  • Height| 400 mm
  • Width| 355 mm
  • Depth| 390 mm
  • Weight| 17.8 kg

In The Box

  • RCF Ayra Pro10 Sub Active 10" Reference Subwoofer

Reviews

0.0 (no ratings yet)

Details

  • Product: RCF Ayra Pro10 Sub Active 10" Reference Subwoofer
  • Manufacturer: RCF
  • Model: 13000608
  • SKU: 13000608
  • RM Product #: 103753
