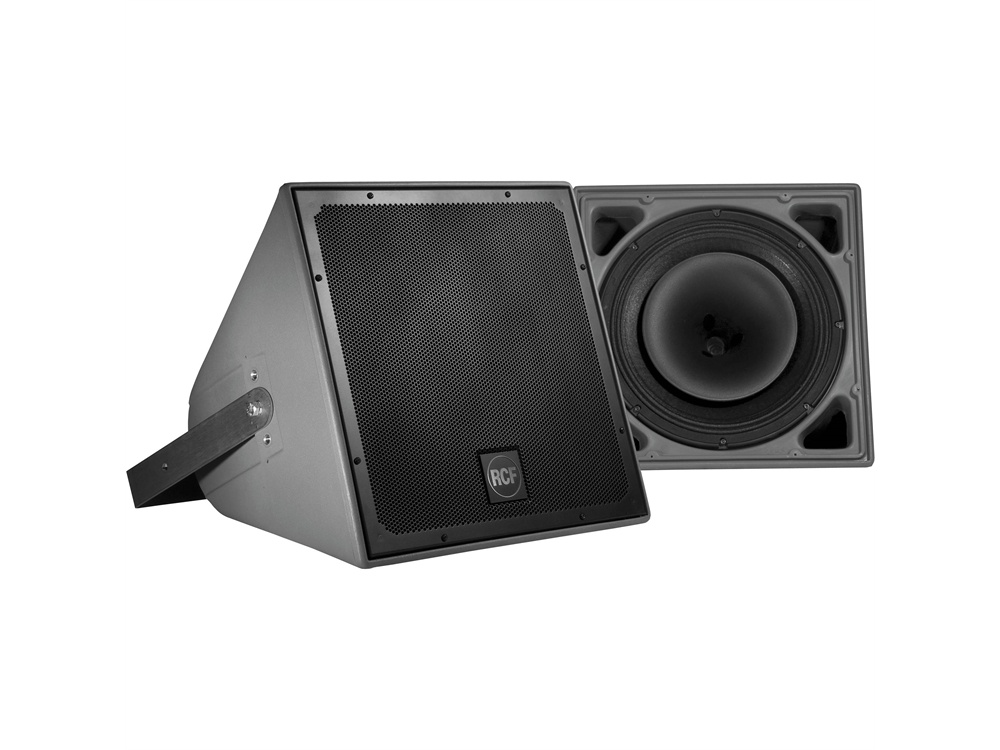

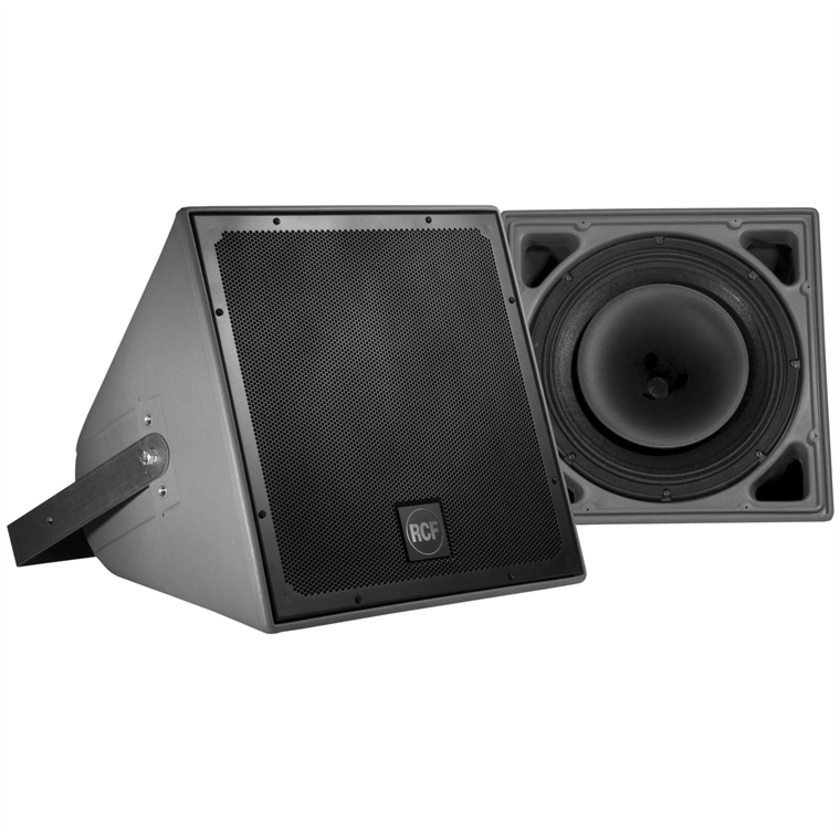

The P6215 is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system for very high output and longer throw applications.
The high-frequency section is a constant directivity CMD horn loaded to a 1.3” RCF Precision Neodymium compression driver with a 2.5” diaphragm assembly for smooth, wide dispersion.
The low frequency transducer is a 15” woofer with a 3” voice coil. The cabinet is equipped with 12 x M10 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. P6215 meets the requirements of IP 55 code (International Protection Rating)
Product Features and Applications:
- Cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected and waterproof IP 55
- Front grille in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing
- Stainless steel bracket
- One 15" high-output LF transducer with 3" voice coil
- One RCF Precision Neo 1.3" C. Driver with 2.5" voice coil
- 60° x 60° conical horn
- 10° X 20° enclosure sides for array configurations
- Active Mosfet Compression Driver Protection
- 12 brass suspension points (M10)
- Line transformer
- Outdoor Sound Reinforcement in medium and large spaces
- Very High-Level AV Playback
- Flown cluster configurations
- Large speech systems
- Music Sound Reinforcement
Technical Specifications:
- Frequency Response -10 dB:75 Hz ÷ 20 kHz
- Max SPL @ 1m:128 dB
- Horizontal coverage angle:60°
- Vertical coverage angle:60°
- Directivity index; Q:12.8
- System Sensitivity:100 dB
- Nominal Impedance:8 O
- Power Handling:600 W
- Peak Power Handling:2400 W
- Protections:Dynamic
- Crossover frequencies:1100 Hz
- Input connector:4 x 1.5mm square, 5m Neoprene cable
- Cabinet Material:Polyethylene rotomoulded
- Height:463mm
- Width:463mm
- Depth:433mm
- Net Weight:19.2kg
