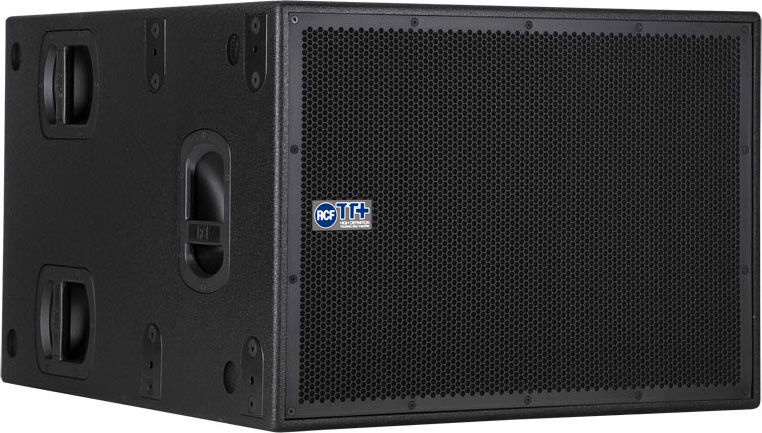

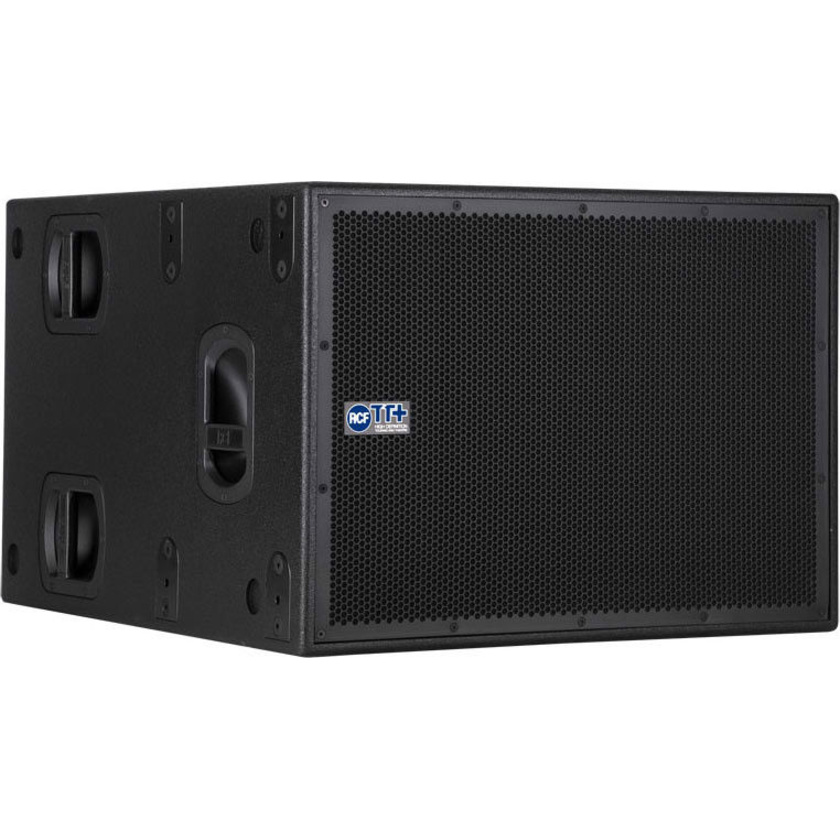

The TS18-A is a compact, high output, bandpass subwoofer module ideal in combination with TT+ two way systems.
The TS18-A woofer features lightweight, high force, neodymium magnet assembly; 100 mm diameter, 25 mm length, inside-outside copper voice coil; silicon double spiders; water resistant treated cone; magnet assembly complex ventilation for minimum power compression. The amplifier section features 1000 watt switching power supply, 1000 watt low frequency digital amplifier.
Product Features and Applications:
- Very compact size
- Maximum output per size available on the market
- Minimum weight
- High power full neodymium 18" transducer
- 1000 Watt switching amplifier
- XLR in/out, Powercon in/out
- Baltic birch cabinet
- Touring sound reinforcement for small and mid-sized venues
- Portable and installed audio-visual systems
- Theatres and night clubs
- Stage monitor side fill reinforcement
Technical Specifications:
- Frequency Response -3 dB:35 Hz ÷ 120 kHz
- Max SPL:136 dB
- Woofer:18" neo, 100 mm voice coil
- Input signal:Bal/unbal
- Input connectors:Stereo XLR
- Output connectors:Stereo XLR
- Input sensitivity:- 2 dBu / +4 dBu
- Total power:1000 W
- Low frequencies:D/1000 W
- Cooling:Convection
- Connections:Powercon in/out
- Cabinet Material:Baltic birch
- Height: 520mm
- Width: 700mm
- Depth: 860mm
- Net Weight: 48kg
