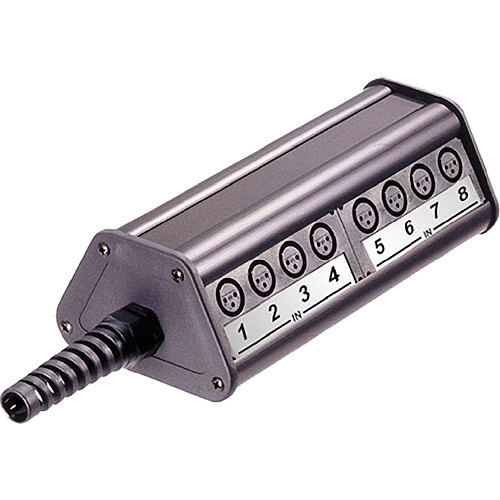

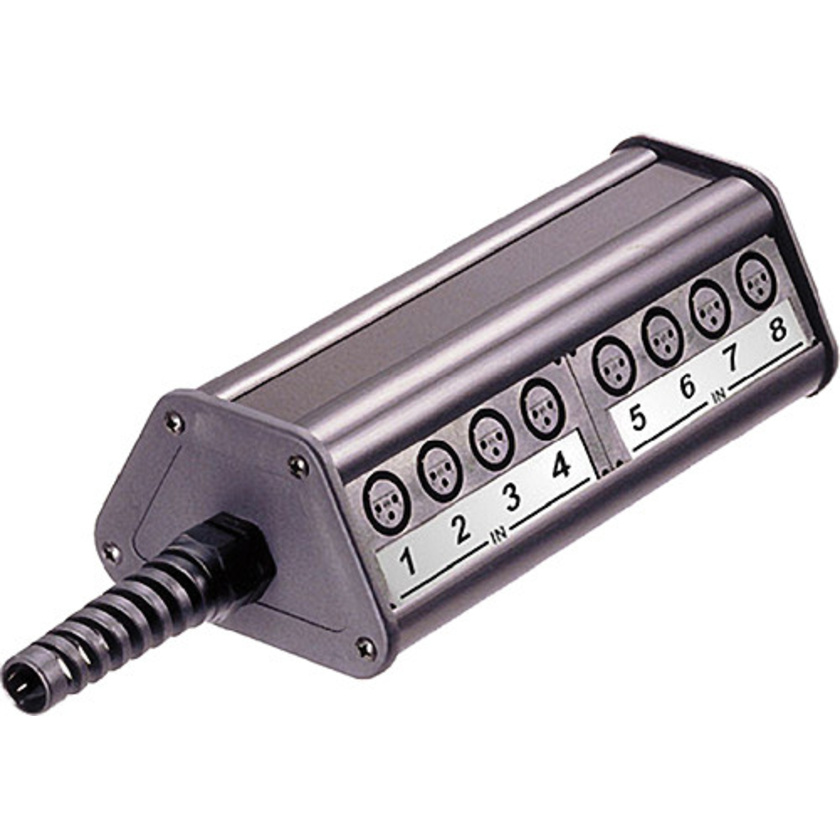

The Rean 16-Input Stage Box (Type B, Length 2) is used to connect microphones and other equipment to multicore cables. It is supplied as a disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces, and screws.
Rean 16-Input Stage Box (Type B, Length 2) has been discontinued, here are some related products you might like:
Rean 16-Input Stage Box (Type B, Length 2)
This product is no longer available
Features
- Modular connector box
- Easy to assemble
- 16 3-Pole XLR Inputs (Female/Send)
Description
Specifications
| Contact Resistance |
<5 mΩ (inner) |
| Dielectric Strength |
0.5 kVDC |
| Insulation Resistance |
>1 GΩ |
| Rated Current Per Contact |
2 A |
| Cable O.D. |
0.59 to 0.78" (15 to 20 mm) multicore |
| Insertion Force |
<10 N |
| Withdrawal Force |
>10 N |
| Lifetime |
>1,000 mating cycles |
| Wire Size |
0.22 and 0.14 mm² 24 and 26 AWG |
| Plate |
Quad: POM |
| End Pieces |
Thermoplastic |
| Temperature Range |
-13 to 158°F (-25 to 70°C) |
| Dimensions (WxHxL) |
Overall: 4.60 x 3.11 x 9.94" (117 x 79 x 252 mm) |
In The Box
- Rean 16-Input Stage Box (Type B, Length 2)
Reviews
(no ratings yet)Details
- Product: Rean 16-Input Stage Box (Type B, Length 2)
- Manufacturer: Rean
- Model: NSB2B-16/0
- SKU: NSB2B-16/0
- RM Product #: 26280
- Cable Connector: XLR 3-Pin Female
- Cable Connector: XLR 3-Pin Male
