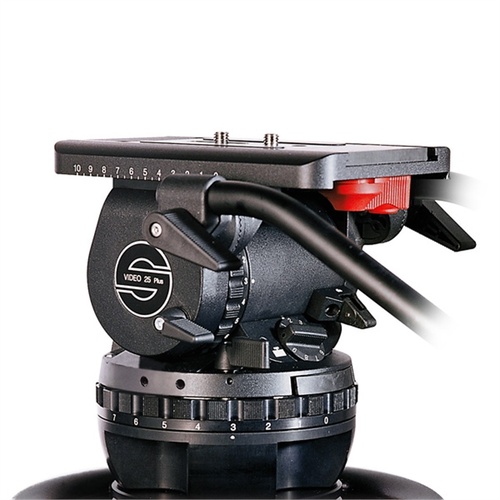

Sachtler VIDEO 25 PLUS FB Fluid Head (Flat Base) - Supports 5-36 kgs Sachtler VIDEO 25 PLUS FB Fluid Head (Flat Base) - Supports 5-36 kgs
Sachtler 2570 SYSTEM 25 PLUS CIII Pedestal System Sachtler 2570 SYSTEM 25 PLUS CIII Pedestal System
Sachtler Case V/C 75 FB Hard Shipping Case Sachtler Case V/C 75 FB Hard Shipping Case
Sachtler Case 60 FB Hard Shipping Case Sachtler Case 60 FB Hard Shipping Case

Sachtler SYSTEM 25 PLUS Carbon Fiber Tripod System

Product #40649 | SKU ST-2512-NZ | Sachtler
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Video 25 Plus Fluid Head
  • 8 - 35 kg Payload Capacity
  • 7 Steps of Pan/Tilt Drag Adjustment
  • 18-Step Counterbalance Adjustment
  • Dual-Stage Carbon Fibre Tripod

Description

The Sachtler System 25 EFP 2 is designed with today's HDTV and widescreen cameras in mind. Consisting of the Video 25 Plus fluid head, it features a seven-step, temperature-independent damping system and an 18-step counterbalance which can be adjusted easily and safely in nine stages, permitting for 90° tilt angles without the concern of the tripod tumbling. It also includes the lightweight CF-150 EFP 2CF double extension carbon fibre tripod with a ground-level spreader for level studio flooring. See below for more information on the components included in this system.

The Video 25 Plus is unusually light for a Studio / OB head. With its seven step, temperature-independent damping system, professional camera operators capture the naked truth on video or film with perfect clarity. The Video 25 Plus displays an 18 step counterbalance which can be adjusted easily and safely in 9 stages with the well known Sachtler dial. Fine-tuning is achieved via a half step function, which can either be engaged or disengaged. Need to change position? Tilt angles up to 90° are no trouble for the Video 25 Plus, even under maximum load. Between others it includes the well-known features from Sachtler, like the Touch & Go quick release system, Self-illuminating Touch Bubble and horizontal and vertical brakes that are conveniently located and easy to reach, for maximum safety in fast-paced reporting situations.

The Video 25 Plus is available either with a 150mm ball base or with a 4-hole flat base that will allow it to be mounted on all 150mm or flat base tripods.

The Sachtler 150 EFP 2 CF Carbon Fibre Tripod Legs two stage tripod, provides maximum stability and carrying capacity. Constructed and drawn out of one-piece carbon fibre material, makes it twist resistant and lighter than dural aluminium. It features a 150mm / 6" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod.

The 150 EFP 2 CF's double extension provides greater stability, allowing an extended height range with a payload of 94.8 kg, and with a weight of only 4.3 kg it's extremely lightweight, solid and stable.

A On-Ground Spreader is chosen when shooting is performed on a level surface, such as studio, city streets, offices, sport fields and stadiums. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches directly to the feet at the bottom of a tripod and its arms are telescopic to allow extension of a tripod leg without detaching the spreader. Fits all 100mm and 150mm bowl tripods (except Short, OB-2000, OB-2000M and Cine 2000 tripods)

The Sachtler Cover EFP 2 Shipping Case (Black) is a hard plastic case designed to ship various Sachtler tripods and heads such as; fluid heads Video 18/20 on tripod Speed Lock CF HD; Video 25 Plus fluid heads on tripods EFP2 with spreader or tripod OB 2000 with spreader (without fluid head) and similar-sized tripods with heads 40.9-44.5" long. It has an adjustable top cover with about a 3.5" leeway.

Features

Frictionless leak proof fluid damping with Seven levels of drag
A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler's patented damping system takes everything is stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof. The damping action of heads is identical across both horizontal and vertical planes and offers you seven steps of drag, for smooth camerawork under the toughest of rough conditions. You can completely disengage the drag for fast panning without affecting the dynamic counterbalance system.

Touch & Go Quick Release / Automatic Locking System
Stop wasting time by fumbling around with clumsy attachments, or bother screwing the camera to head and then having to unscrew it again. With the Touch & Go system invented by Sachtler, the camera plate is secured to the camera, while the mating balance plate is mounted on the fluid head. All you need to do is slip the camera into position, engage the mechanism, and the camera is locked firmly in place, when finished just disengage the latch and go. When you set up the camera for the next shot you still have all the original settings. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.

Sliding Balance Plate
The sliding camera mount and plate with a 4.4-inch/11.1 cm (150mm Ball Base) or 3.9-inch/9.9 cm (Flatbase) sliding range, allows you to compensates precisely for a variety of configuration weights. Ensuring perfect balance across the horizontal plane. Most importantly, once adjusted, the settings cannot be lost.

18 Step dynamic counterbalancing system
Built with torsion springs the dynamic counterbalancing system compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. Freeing you to concentrate fully on your camerawork. Its 18-step counterbalance allows adjustments via dial, in 9 stages and fine tune by half step function, and can be activated and deactivated individually. Independent from the damping system, they work silently and without the need for maintenance.

Safe at any temperature
Pressure or temperature does not influence the damping system, it has an operating range from -40°C to +60°C, and works without friction. Shoot wherever you want, from torrid heat to cold climates.

  • Vibrationless vertical / horizontal brakes, for maximum safety in fast-paced reporting situations.
  • Built-in illuminated bubble for horizontal levelling, uses a conventional battery and ensures easy levelling even under unfavourable lighting conditions.
  • Load capacity of: 8 - 35 kg, ideally suited for HDTV and Wide Screen cameras.
  • Carbon Fibre construction with 22mm (0.87") tube diameter
  • 150mm / 6" bowl base
  • Double extension design
  • Maximum height of 157.9 cm
  • Quick clamping system, locks tripod legs in seconds
  • Supports up to 94.8 kg
  • Hard plastic shipping case with an adjustable top section

Compatible with

  • Sachtler fluid heads Video 18/20 on tripod Speed Lock CF HD
  • Sachtler Video 25 Plus heads on tripods EFP2 with spreader or tripod OB 2000 with spreader (without fluid head)
  • Similar-sized tripods with heads 40.9-44.5" long

Specifications

Video 25 Plus Fluid Head (150mm Ball Base)
Load Capacity 8 - 35 kg
Diameter/Thread 150 mm 6" Half Ball
Counter Balance System Torsion Springs
Counter Balance Range 18 steps
Centre of Gravity 150 mm
Quick Release/Wedge Plate Yes (Cat #1064)
Balance Plate Yes, 4.4" Sliding Range
Tilt Drag 8 steps, 0 to 7
Tilt Range +90° to -75°
Tilt Lock Yes
Spring Loaded Counter Balance 8 steps, 0 to 7
Pan Range 360°
Pan Lock Yes
Levelling Bubble/Illuminated Yes / Illumination
Temperature Range -40° to 60°C
Weight 4.4 kg
150 EFP 2 CF Carbon Fibre Tripod Legs
Material Carbon Fibre
Load Capacity 94.8 kg
Bowl Diameter/Thread 150mm 6" Half Bowl
Minimum Height 20.9"(53.0 cm)
Maximum Height 62.2"(157.9 cm)
Leg Stages/Sections 2/3
Leg Lock Type Quick Clamp Torque Lock
Centre Brace/Mid-Level Spreader No
Spiked/Retractable Feet Spiked
Folded/Transport Length 29.1"(73.9 cm)
Weight 4.3 kg
Other Spreader Required
Spreader SP 100/150 HD On-Ground Tripod Spreader
Construction Rubber, Heavy-Duty
Type On-Ground
Adjustable Yes
Minimum Length 13.8" (35.0 cm)
Maximum Length 22.8"(57.9 cm)
Weight 1.6 kg
Cover EFP 2 Hard Shipping Case
Material Hard plastic
Type of Closure Strap
Interior Dimensions 40.9-44.5 x 11" (104-113 x 28cm) (L x Dia)
Accommodates Various Sachtler tripods with heads 40.9-44.5" long
Carrying/Transport Options Handle
Weight 5.3kg

In The Box

Video 25 Plus Fluid Head (150mm Ball Base)#####
  • 1x Right Telescopic Pan Bar
  • 1x Left Telescopic Pan Bar
  • Quick Release / Wedge Plate
  • Tripod Head, Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
  • Legs, Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
150 EFP 2 CF Carbon Fiber Tripod Legs
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
Spreader SP 100/150 HD On-Ground Tripod Spreader
  • Limited 1-Year Warranty, Extendable to 2-Year with Product Registration
Cover EFP 2 Hard Shipping Case
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Sachtler SYSTEM 25 PLUS Carbon Fiber Tripod System
  • Manufacturer: Sachtler
  • Model: ST-2512-NZ
  • SKU: ST-2512-NZ
  • RM Product #: 40649
  • Head Type: Fluid
  • Load Capacity: 35.0 kg
  • Material: Carbon Fibre
  • Closed Length: 95 cm
  • Stage & Sections: 2/3
  • Weight: 18.50 kg
  • Maximum Height: 180.9 cm
  • Minimum Height: 74.9 cm
