SmallRig 5049 VB99 mini V Mount Battery (Kit)

Product #118668 | SKU 5049 | SmallRig
Usually ships in 6 - 8 weeks what does this mean?
Our Price $449
Usually ships in 6 - 8 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 6 - 8 weeks. Deliver to Auckland for $20 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 6 - 8 weeks
Click & Collect

Features

  • Foldable V-Mount Battery Mount Plate
  • Compact, lightweight, and efficient
  • Compact size for easy portability
  • PD3.0 100W fast charging technology

Description

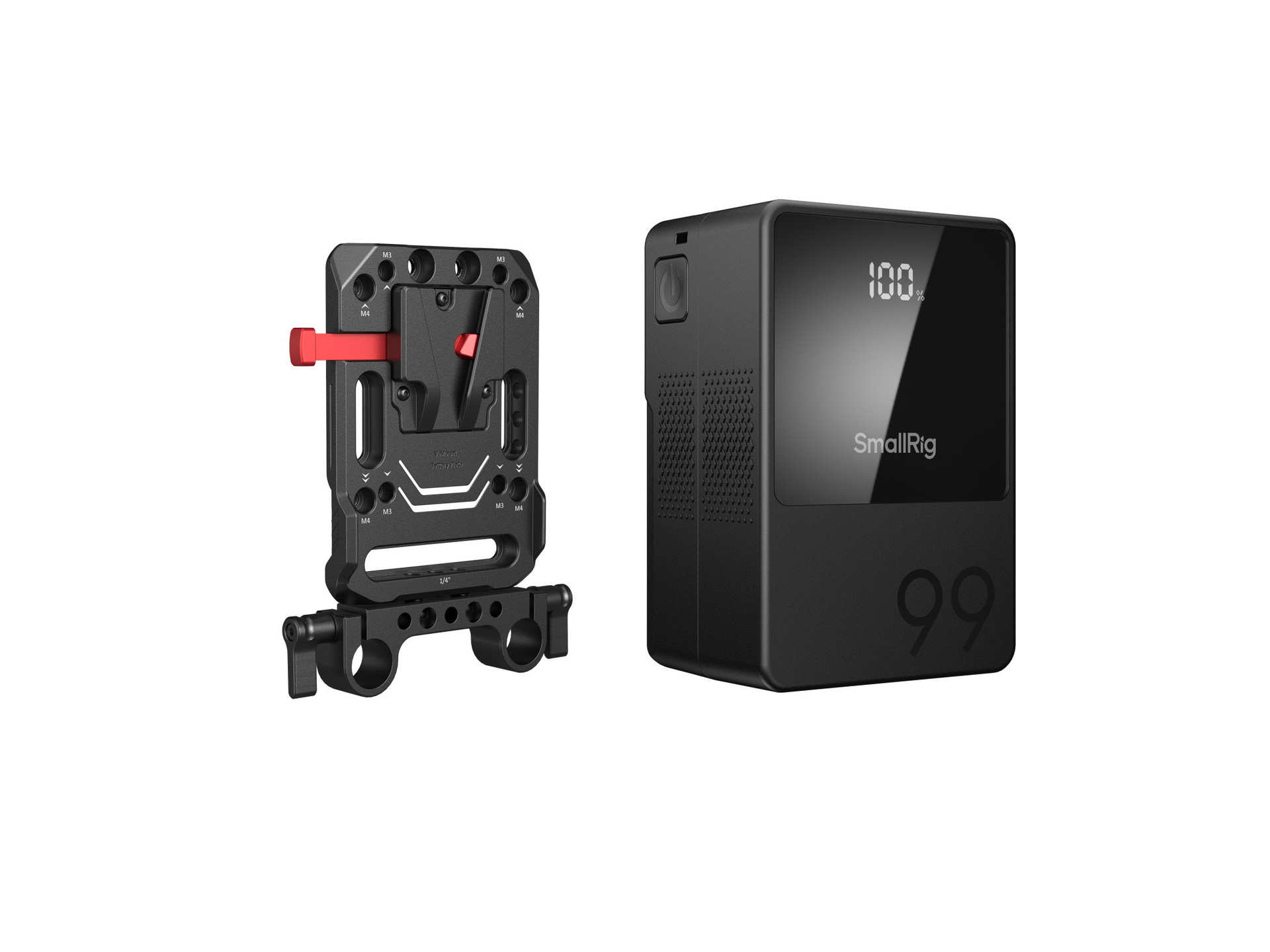

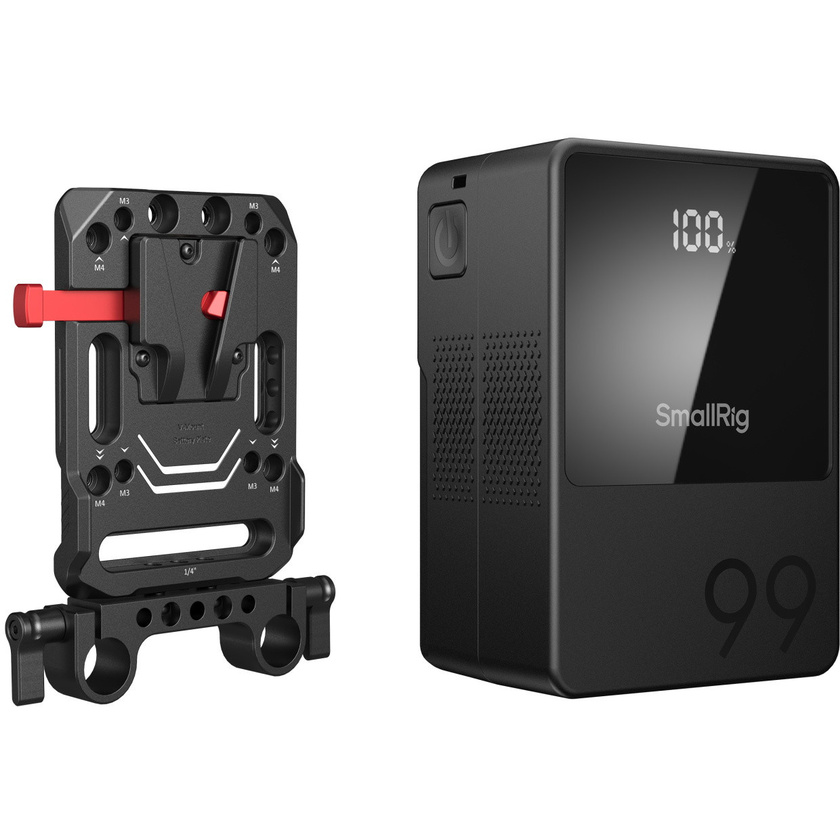

The SmallRig 5049 VB99 mini V Mount Battery includes the VB99 mini V Mount Battery with the foldable V-Mount Battery Mount Plate, providing a compact and lightweight integrated V-mount battery power solution. This kit stands out for its exceptional compatibility, adapting seamlessly to various devices and shooting environments. Its small size and portable design allow for convenient carrying and storage, providing power solutions to your devices anytime, anywhere.

The VB99 mini V Mount Battery is equipped with top-tier LG cells and features PD3.0 100W fast charging technology. It also has multiple interfaces to cater to your diverse power needs during shooting, ensuring safety and reliability.

The V-Mount plate features a 15mm dual rod clamp, allowing rapid attachment to a 15mm rod ecosystem.

VB99 mini V mount battery kit is a portable, flexible, and high-performance power solution that meets creators' power needs in various situations.

Certification:  CCC / FCC / CE / RoHS / ISED / RCM / PSE / KC / TISI

Button Functions:

Single Click:

Turn off the screen at normal brightness

Restore maximum brightness after dimming

Illuminate the screen after shutdown or screen blackout

Double Click: Switch between displaying voltage and power in charging and discharging mode

3-Second Press: Press and hold for 3 seconds to forcibly power off the USB-C, USB-A, and DC ports for discharging. Restore port operation by single-clicking or reinserting the plug ****

Specifications

Product Dimensions 132.5 x 108 x 53mm / 5.22 x 4.25 x 2.1in
Package Dimensions 148 .5 x 125 x 104.5mm / 5.8 x 4.9 x 4.1in
Product Weight (Including Charging Cable) 774 ± 10.0g / 27.3 ± 0.4oz
Package Weight 1104 ± 10.0g / 39 ± 0.4oz
Material(s) Flame Retardant PC
Capacity 14.54V 6800mAh 98.872Wh
Rated Discharge Power 100W
Input
USB-C 100W (Max)
D-Tap / BP 6.8A (Max)
Output
USB-C 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓5A (Max)
USB-A 5V⎓3A﹑9V⎓3A﹑12V⎓2A (Max)
BP / D-Tap 10A (Max)
8V-OUT 8V⎓3A (Max)
12V-OUT 12V⎓3A (Max)
Charging Protocols
USB-C PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A
USB-A QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A
Cut-Off Voltage 11.2V
Operating Temperature -15℃ to 60℃ / 5℉ to 140℉
Charging Temperature 0℃ to 45℃ / 32℉ to 113℉
Optional Charging Methods BP, 16.8V D-Tap, USB-C

In The Box

  • VB99 mini V Mount Battery  x 1
  • V Mount Battery Mount Plate with Dual 15mm Rod Clamp x 1
  • SmallRig Custom Sticker Set x 1
  • User Manual x 1
  • Operation Guide x 1
  • Guarantee Card x 1

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: SmallRig 5049 VB99 mini V Mount Battery (Kit)
  • Manufacturer: SmallRig
  • Model: 5049
  • SKU: 5049
  • RM Product #: 118668
  • Battery Mount / Series: V-Mount
  • Batteries / Chargers: Batteries Only
  • Wattage / mAh: 6800mAh
  • Warranty: See here for warranty details view terms
