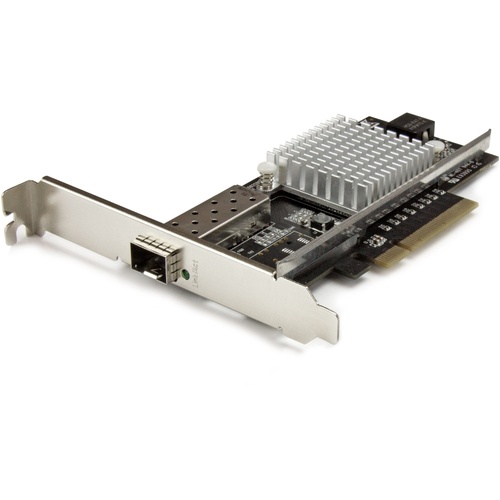

StarTech PCIe 10 GbE Fiber Network Card Open SFP+
Product #80696 | SKU PEX10000SFP
Available from supplier Usually ships in 2 - 3 working days
0.0 (no ratings yet) Thanks for your rating!


StarTech PCIe 10 GbE Fiber Network Card Open SFP+

Product #80696 | SKU PEX10000SFP
Available from supplier Usually ships in 2 - 3 working days


Product Features
  • Up to 10Gbps over fiber optic cabling
  • Up to 16K Jumbo Frame support
  • Supports 802.3ad (Link Aggregation) and 802.1Q
  • Supports Checksum Offload (IP, TCP, UDP)
  • Supports PCI Message Signaled Interrupt
Customer Reviews
0.0 (no ratings yet) Thanks for your rating!
Email me when stock arrives
Product Details
  • Product: #80696
  • SKU: PEX10000SFP
Our Price $459.00

Delivery - $8.90*
2 - 3 working days
Pickup AUCKLAND
2 - 3 working days
Pickup WELLINGTON
2 - 3 working days
*estimated shipping to Auckland

Related Products
StarTech PCIe Gigabit SC Fiber Network Card StarTech PCIe Gigabit SC Fiber Network Card
StarTech PEX1000SFP2 PCIe Gigabit Fiber Network Card with SFP StarTech PEX1000SFP2 PCIe Gigabit Fiber Network Card with SFP

Description

The StarTech PCIe 10 GbE Fiber Network Card Open SFP+ is a cost-effective solution that delivers fast and reliable 10 Gbps network access at longer distances than copper-based networks. Using the SFP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fiber optic network.

Key Features:

Faster Networking Speed

With the rising strain on network resources due to large file transfers, multimedia content, and an increase in network users, more bandwidth is often required at various levels of your networking infrastructure. With up to 10 Gbps bandwidth, this fiber NIC lets you transfer more data at faster speeds, and is an ideal low-cost addition to your server or high-powered workstation.

Greater Flexibility & Distance

The PEX10000SFP adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP+ slot, and is compatible with most . With broad SFP+ compatibility this cost-effective fiber card lets you use your preferred SFP+ module, giving you more options to connect your computer directly to a fiber network at greater distances.

Superior Power Efficiency

For improved operating efficiency, the PEX10000SFP features an energy-efficient Tehuti TN4010 chipset that offers significantly reduced power consumption versus most comparable cards, including the Intel® 82599 chipset cards. Superior power efficiency also helps minimize heat generated by the card, in turn avoiding an increase in the operating temperature within your server case.

Specifications

Connector
1 - Connector Type(s) PCI Express x4
1 - External Ports SFP+ Slot
Environmental
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity 20~80% RH (Non-Condensing)
Hardware
Ports 1
Interface Fiber (10 Gigabit Ethernet)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Industry Standards IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)
PCI Express Rev 2.0
Chipset ID Tehuti - TN4010
AMCC - QT2025
Indicators
1 - LED Indicators Link/Activity (Green)
Packaging Information
Package Height 98,4 ft [30 m]
Package Length 472,3 ft [144 m]
Shipping (Package) Weight 320,4 lb [145 kg]
Package Width 567,4 ft [173 m]
Performance
Maximum Data Transfer Rate 20000 Mbps (20 Gbps) - Full-Duplex
Compatible Network s 10 Gbps
Full Duplex Support Yes
Jumbo Frame Support 16K max.
MTBF 38,400 hours
Supported Protocols IEEE 802.3ad (Link Aggregation)
IEEE 802.1Q (VLAN Tagging)
IEEE 802.1P (Layer 2 Priority Encoding)
IEEE 802.3x (2005 Flow Control Support)
RFC 2819 (RMON MIB Statistics)
Physical Characteristics
Weight of Product 99,4 lb [45 kg]
Material Steel
Product Length 275,5 ft [84 m]
Product Width 59,0 ft [18 m]
Product Height 393,6 ft [120 m]
Power
Power Consumption (In Watts) 4.12W Max

In The Box

  • 1 Port PCI Express 10GBase-LR/SR/LRM Fiber Network Card
  • Low-Profile Bracket
  • Driver CD
  • Instruction Manual
