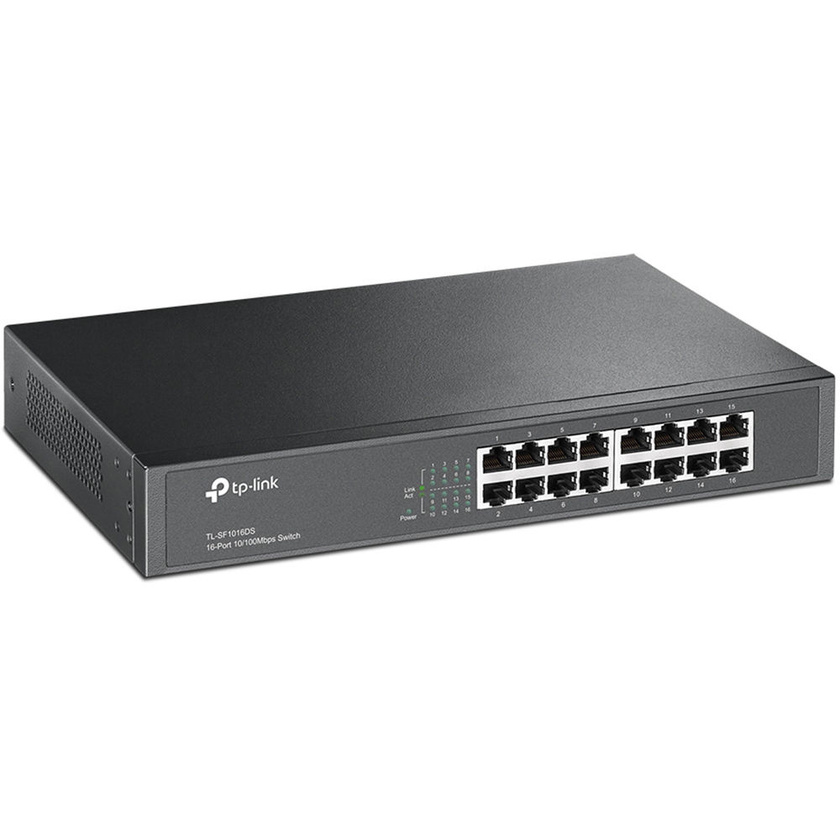

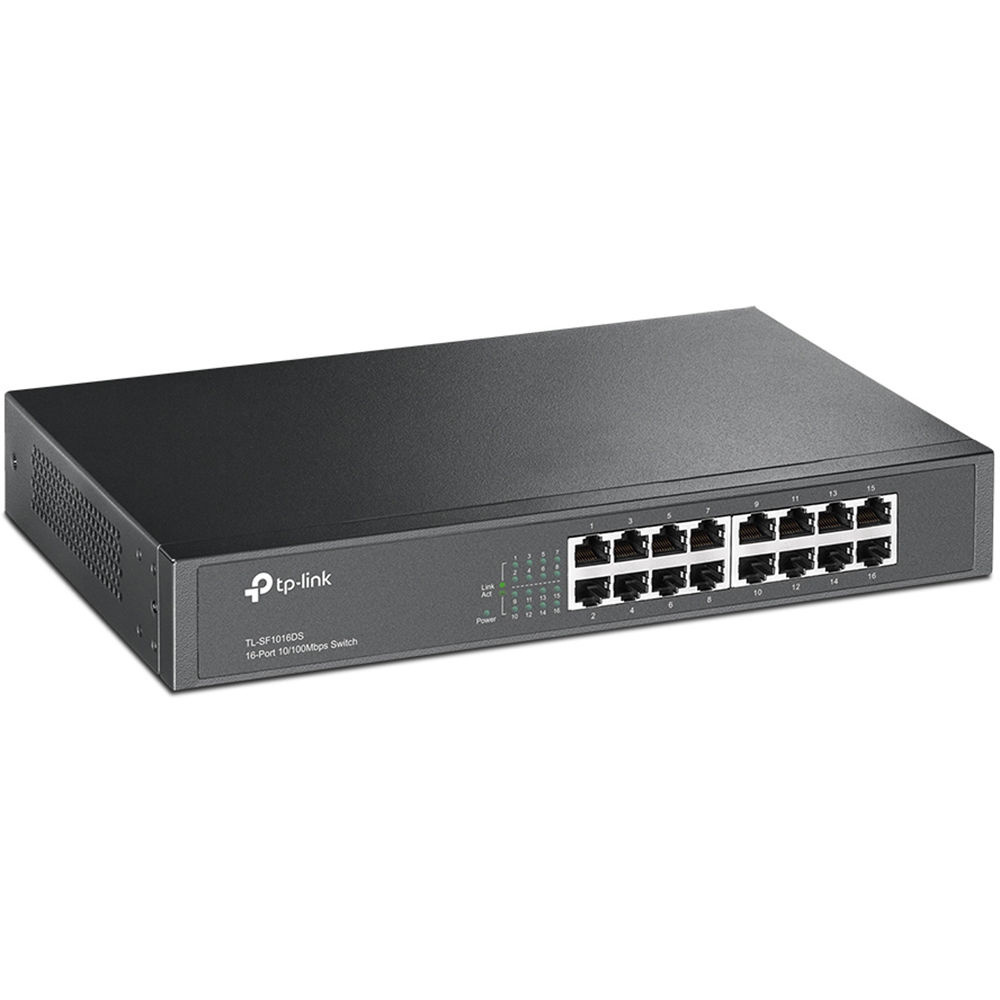

TP-Link 16-Port 10/100 Mb/s Desktop/Rackmount Switch

Product #107385 | SKU TL-SF1016DS | TP-Link
Usually ships in 2 - 3 weeks what does this mean?
Our Price $119
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to Auckland for $15 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 16 x 10/100 Mb/s Ethernet Ports
  • Rack-Mountable or Desktop Use
  • Up to 3.2 Gb/s Switching Capacity
  • Up to 2.38 Mpps Forwarding Rate
  • Energy-Efficient Technology
  • Plug-and-Play

Description

The TP-Link 16-Port 10/100 Mb/s Desktop/Rackmount Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Specifications

Interfaces
Inputs/Outputs 16 x 10/100 Mb/s Ethernet (RJ45)
Protocols
Supported Protocols Auto-MDIX/MDI
Transmission Method Store-and-Forward
MAC Address Table Size 8K
Standards
Supported IEEE Standards 802.3i, 802.3u, 802.3x
Performance
Forwarding Rate 2.38 Mpps
Switching Bandwidth 3.2 Gb/s (Non-Blocking)
Packet Buffer 2 Mb
Electrical
Power Draw 2.1 W (Active)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
Certifications FCC, RoHS
*as per Manufacturer
General
Cooling System Passive
Material of Construction Steel
Dimensions 11.6 x 7.1 x 1.7" / 294.64 x 180.34 x 43.18 mm

In The Box

  • TP-Link 16-Port 10/100 Mb/s Desktop/Rackmount Switch
  • Power Cord
  • Rackmount Kit
  • Rubber Feet
