Whether you're in charge of a small office or a large business, the TP-Link TL-SX3008F JetStream 8-Port SFP+ 10GE Managed Switch can help you expand your network capacity. With eight 10G SFP+ ports, this managed switch allows for fast and reliable data transfers over fibre connections to compatible devices like network storage and servers. It has a switching capacity of 160 Gb/s and a forwarding rate of 119.04 Mpps. The switch also offers robust Layer 2 features, including link aggregation, IGMP snooping, and port mirroring. To protect your data, it includes security features such as an Access Control List (ACL) and VLAN support. Plus, with the Omada Software Defined Networking platform and the Omada app, you can manage your connected network devices remotely.
TP-Link TL-SX3008F JetStream 8-Port SFP+ 10GE Managed Switch has been discontinued, here are some related products you might like:

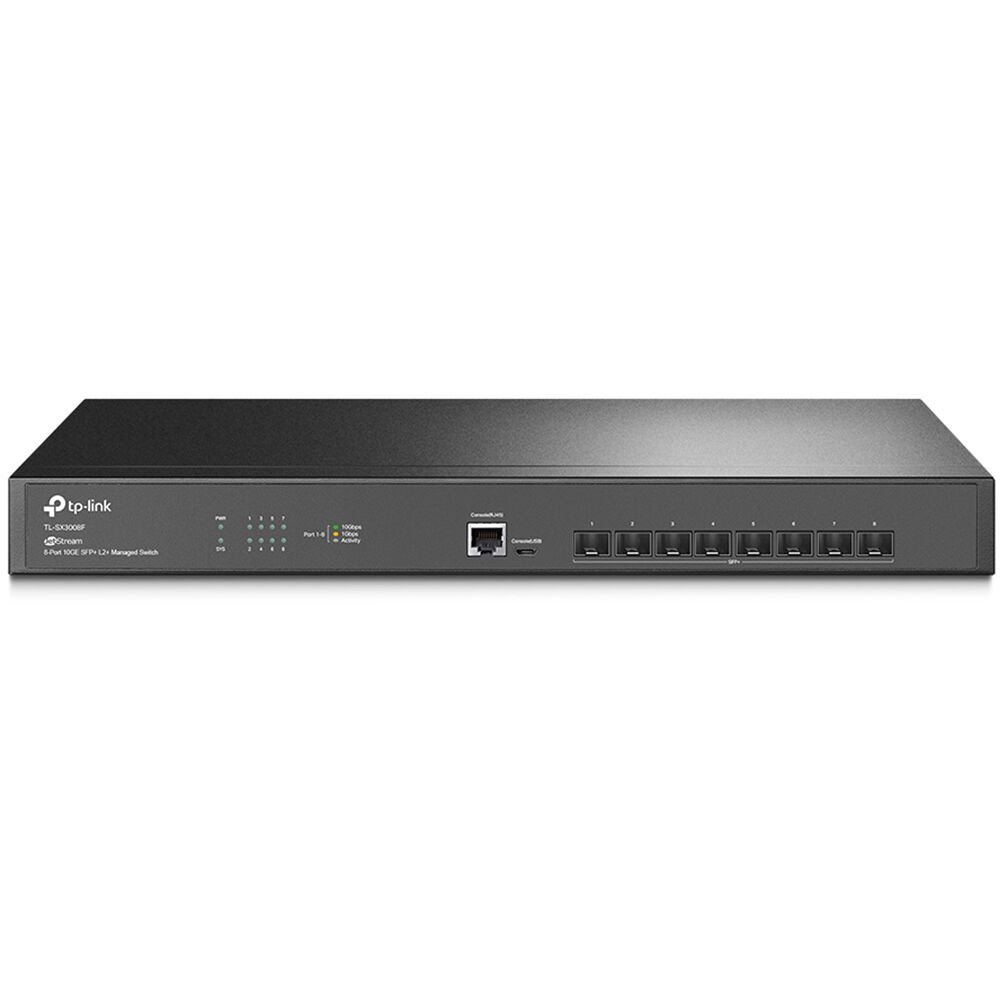

TP-Link TL-SX3008F JetStream 8-Port SFP+ 10GE Managed Switch
This product is no longer available
Features
- 8 x 10G SFP+ Ports
- 160 Gb/s Switching Capacity
- 119.04 Mpps Forwarding Rate
- Rackmount Design
- Passive Cooling
- Centralised Network Management
Description
Specifications
| Key Specs | |
| Inputs/Outputs | 8 x 10Gb SFP+ 1 x Ethernet (RJ45) (Console) 1 x Micro-USB (Console) |
| Interfaces | |
| Inputs/Outputs | 8 x 10Gb SFP+ 1 x Ethernet (RJ45) (Console) 1 x Micro-USB (Console) |
| Protocols | |
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring |
| Queueing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 32K |
| VLAN Groups | 4000 |
| Security | |
| Security Features | DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control |
| Access Control List | 512 |
| Static Routes | 48 |
| Standards | |
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3x |
| Performance | |
| Forwarding Rate | 119.04 Mpps |
| Switching Bandwidth | 160 Gb/s (Non-Blocking) |
| Priority Queues | 8 |
| Electrical | |
| Power Draw | 15.46 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| General | |
| Cooling System | Passive |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 7.1 x 1.7" / 440 x 180 x 44 mm |
In The Box
- TP-Link TL-SX3008F JetStream 8-Port SFP+ 10GE Managed Switch
- Power Cable
- Rackmount Kit
- Rubber Feet
Reviews
(no ratings yet)Details
- Product: TP-Link TL-SX3008F JetStream 8-Port SFP+ 10GE Managed Switch
- Manufacturer: TP-Link
- Model: TL-SX3008F
- SKU: TL-SX3008F
- RM Product #: 110260
