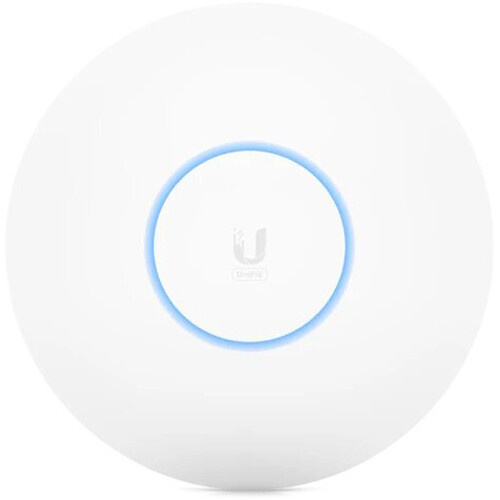

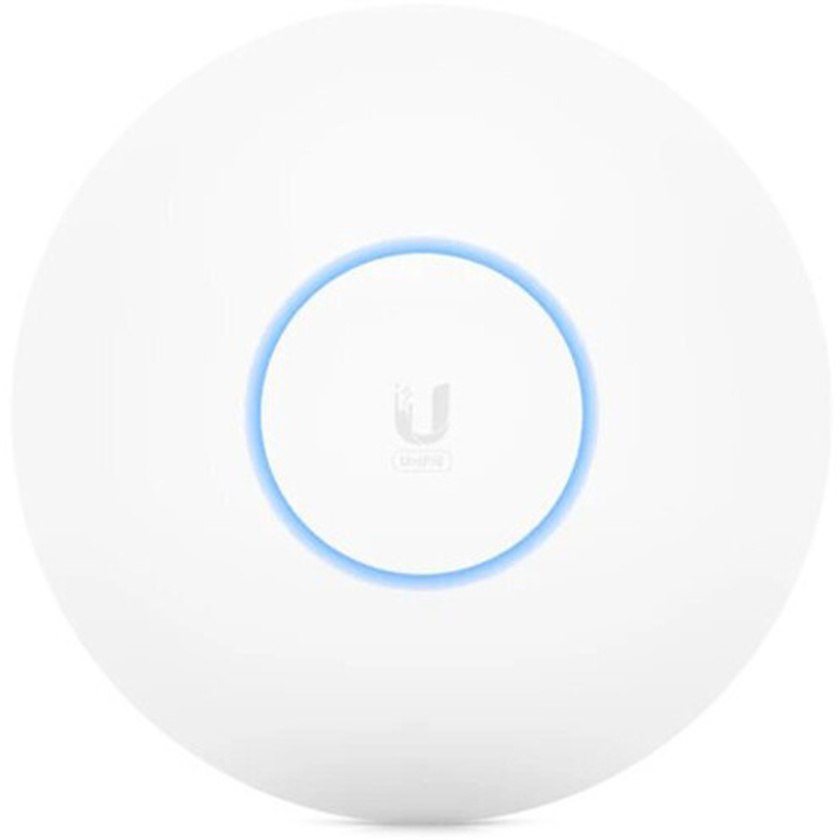

Ubiquiti Networks U6-LR UniFi 6 AX3000 Long-Range Access Point

Product #107767 | SKU U6-LR | Ubiquiti
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $435
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to Auckland for $14 Change location
Click & Collect Availability
Wellington Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • 1.3 GHz dual-core processor
  • Four-stream high-efficiency Wi-Fi 6 tech
  • 5 GHz band 4x4 MU-MIMO and OFDMA
  • 2.4 GHz band 4x4 MIMO
  • Powered with 802.3at PoE

Description

The Ubiquiti Networks U6-LR UniFi 6 AX3000 Long-Range Access Point is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments. U6-LR WiFi6 delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Key Features
  • 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
  • Four-stream high-efficiency Wi-Fi 6 technology
  • 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
  • 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
  • Powered with 802.3at PoE (PoE injector not included)

Specifications

Processor Specs Dual-Core ® Cortex ® A53 at 1.35 GHz
Memory Information 512 MB
Management Interface Ethernet
Networking Interface (1) 1 Gbps Ethernet RJ45
Button Factory Reset
LED RGB
Power Method PoE+, Passive PoE (48V)
Power Supply UniFi PoE Switch, 48V, 0.5A PoE Adapter (NotIncluded)
Supported Voltage Range 44 to 57VDC
Max. Power Consumption 16.5W
Max. TX Power 26dBm on both 2.4GHz & 5GHz
MIMO 4 x 4 on both 2.4GHz & 5GHz
Throughput Speeds 2.4 GHz - 600 Mbps, 5 GHz - 2400 Mbps
Antenna Gain 2.4 GHz - 4 dBi, 5 GHz - 5.5 dBi
Wi-Fi Standards 802.11a/b/g, Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions
BSSID 8 per Radio
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
Concurrent Clients 300+
Dimensions Ø220 x 48 mm (Ø8.66 x 1.89")
Weight Without Mount: 800 g (1.76 lb), With Mount: 930 g (2.05 lb)
Enclosure Material Plastic
Mount Material SGCC Steel
Weatherproofing IP54

In The Box

  • Ubiquiti Networks U6-LR UniFi 6 AX3000 Long-Range Access Point

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Ubiquiti Networks U6-LR UniFi 6 AX3000 Long-Range Access Point
  • Manufacturer: Ubiquiti
  • Model: U6-LR
  • SKU: U6-LR
  • RM Product #: 107767
