RCF E Max 3112 Full-Range 350W Nearfield Speaker has been discontinued, here are some related products you might like:

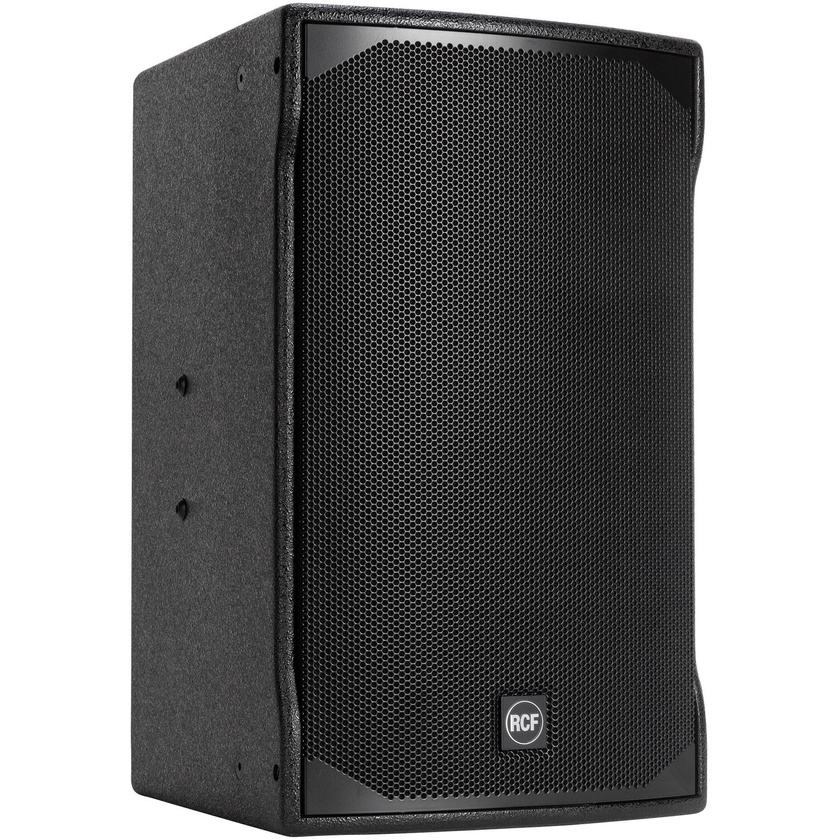

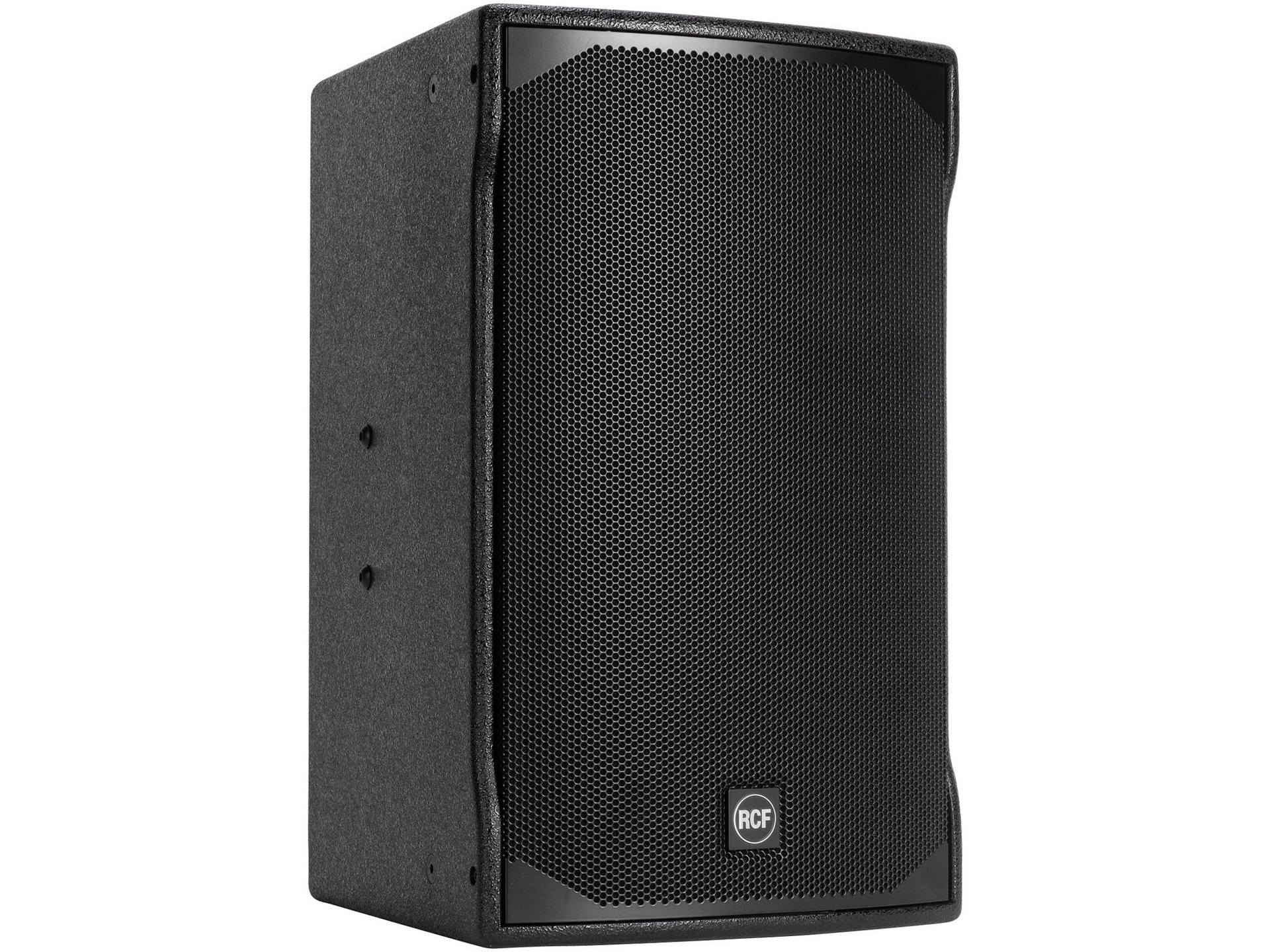

RCF E Max 3112 Full-Range 350W Nearfield Speaker

Product #114129 | SKU 13000763 | RCF
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • For Clubs & Venues
  • For Nearfield Applications
  • Powerful Balanced Sound
  • Wide Directivity at 90 x 70°
  • 1 x 12" Woofer
  • 1 x 1" Compression Driver

Description

Give club patrons and concert-goers an exceptional audio experience with the RCF E Max 3112 Full-Range 350W Nearfield Speaker. This two-way passive speaker is specifically designed for near-field listening in venues and clubs. Offering superior speaker construction, an extensive frequency range, and a wide range of directivity, these monitors deliver a well-balanced and powerful sound. Even at high SPLs, vocal coherence and stability are guaranteed.

Not only does the RCF E Max 3112 excel in sound performance, but it also boasts a durable design. Crafted from solid birch plywood and equipped with steel grilles and interior foam, this speaker is built to withstand the rigors of professional use. It features multiple mounting points, allowing for versatile placement options. Conveniently carry the speaker using the top handle and place it on a pole, or effortlessly fly it on the walls as needed. For seamless connectivity, the RCF E Max 3112 is equipped with speakON NL4 connection points.

Specifications

Key Specs
Configuration Passive 2-Way
Total Power Capacity Passive:
350 W RMS
Passive:
1400 W Peak
HF Driver 1 x 1" / 2.5 cm Compression Driver
LF Driver 1x 12" / 30.5 cm Woofer
Frequency Range 55 Hz to 20 kHz -10 dB
Total Power Capacity Passive:
350 W RMS
Passive:
1400 W Peak
System Impedance 8 Ohms
Drivers
HF Driver 1 x 1" / 2.5 cm Compression Driver
HF Voice Coil 1.5" / 3.8 cm
MF Driver No
LF Driver 1x 12" / 30.5 cm Woofer
LF Voice Coil 2.5" / 6.3 cm
Performance
Frequency Range 55 Hz to 20 kHz -10 dB
Maximum SPL 129 dB SPL (Peak)
Coverage Angle 90° H x 70° V
Directivity 11 (Directivity/Q Factor)
Speaker Sensitivity Passive:
98 dB
HF:
106 dB
LF:
98 dB
Connectivity
Audio I/O 1x speakON 4-Pin Female Input
1x speakON 4-Pin Male Output
Signal Processing
Crossover 1.8 kHz
Phase Adjustment No
Physical
Mounting 2 x M8
17 x M10
Handles 1x Top
Construction Material Plywood, Steel
Dimensions 15 to 16.6 x 24.2" / 38.1 to 42.2 x 61.5 cm
Weight 48.5 lb / 22 kg

In The Box

  • RCF E Max 3112 Full-Range 350W Nearfield Speaker

Reviews

0.0 (no ratings yet)

Details

  • Product: RCF E Max 3112 Full-Range 350W Nearfield Speaker
  • Manufacturer: RCF
  • Model: 13000763
  • SKU: 13000763
  • RM Product #: 114129
