Add wireless monitoring capabilities to your video capture setup with the Shimbol ZO600S SDI & HDMI Wireless Video Transmission System. This system, which can be powered using USB Type-C input or Sony L-Series batteries, includes a compact transmitter and receiver set. Boasting pro-style SDI (BNC) and HDMI inputs and outputs, the ZO600S system allows for transmission of up to 1080p60 video with a latency of less than 1ms. The range for line-of-sight transmission is up to 600'. The transmitter is equipped with one SDI input and one HDMI input, while the receiver offers one SDI output and one HDMI output, making it easy to connect to compatible monitors.
Shimbol ZO600S SDI & HDMI Wireless Video Transmission System has been discontinued, here are some related products you might like:

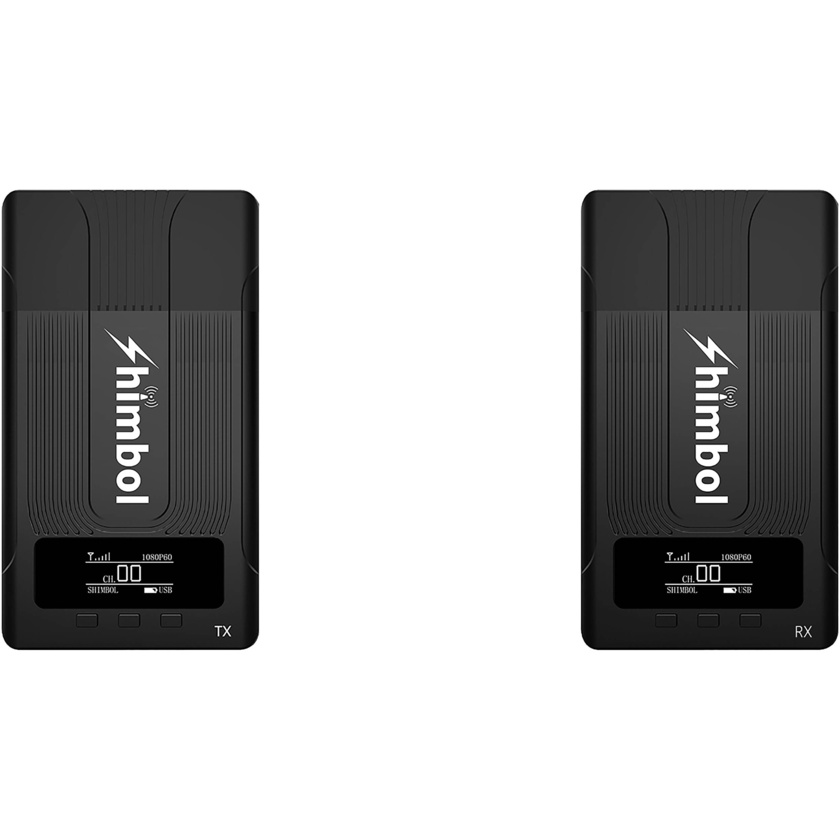

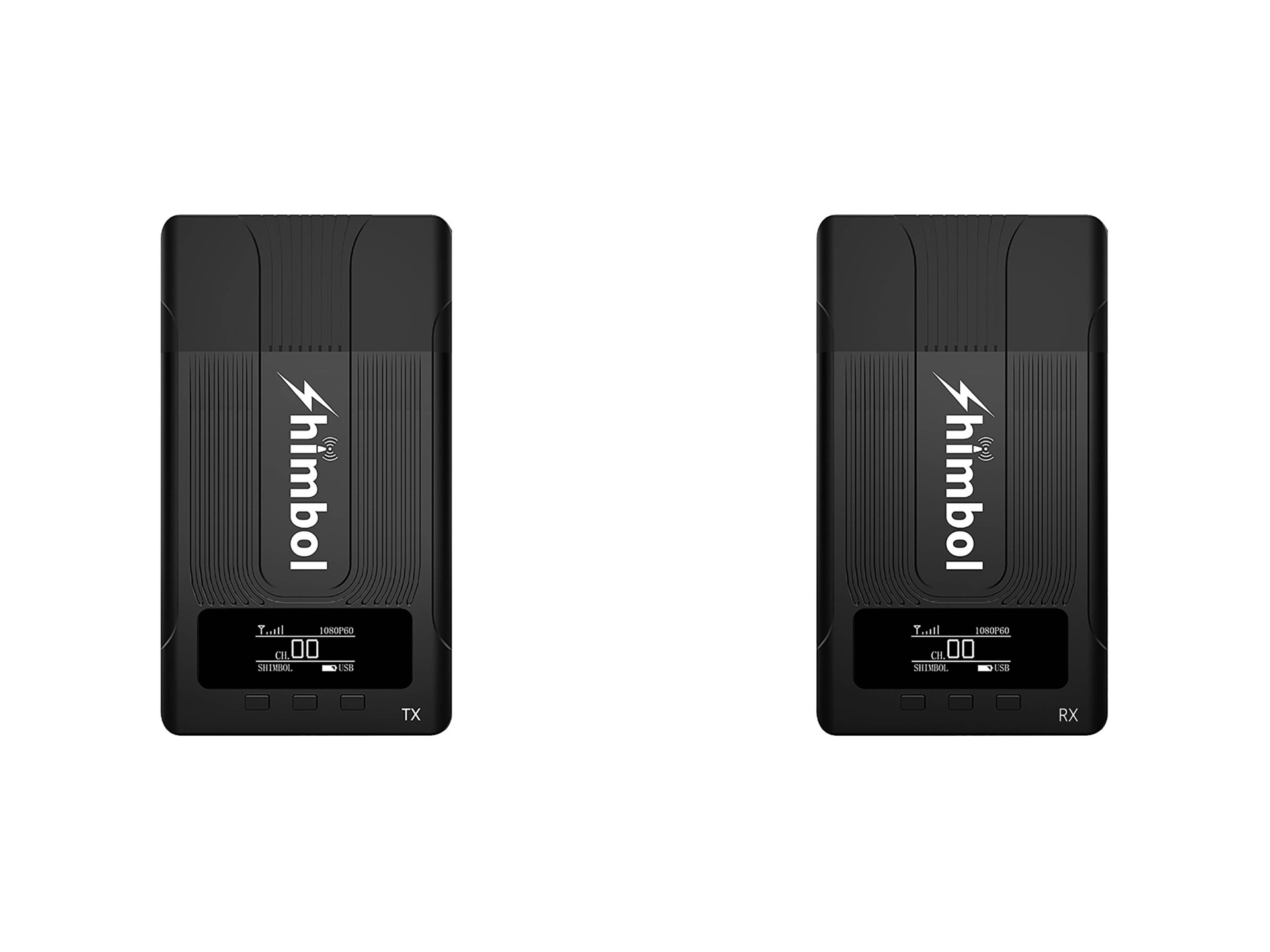

Shimbol ZO600S SDI & HDMI Wireless Video Transmission System
This product is no longer available
Features
- Wireless Video Transmission up to 600'
- 1 x Transmitter & 1 x Receiver
- Supports up to 1080p60 Video
- SDI & HDMI Input, SDI & HDMI Out
- USB Type-C Power Input & L-Series Plate
- Transmit to Receiver & Mobile Devices
Description
Specifications
| Key Specs | |
| Video I/O | Transmitter: 1x BNC (HD-SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input Receiver: 1x BNC (HD-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output |
| Embedded Audio | Not Specified by Manufacturer |
| Latency | 80 ms |
| Video Format | HDMI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/59.94/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/50 |
| Battery Type | Transmitter: 1x L-Series Receiver: 1x L-Series |
| Power Consumption | Transmitter: 4.5 W Receiver: 3 W |
| Mounting | Transmitter/Receiver: 1x 1/4"-20 Female (Bottom) |
| Inputs / Outputs | |
| Antenna I/O | No |
| Video I/O | Transmitter: 1x BNC (HD-SDI) Input Transmitter: 1x HDMI (Unspecified Signal) Input Receiver: 1x BNC (HD-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output |
| Embedded Audio | Not Specified by Manufacturer |
| Audio I/O | No |
| Power I/O | Transmitter: 1x USB-C Input Receiver: 1x USB-C Input |
| Encryption | No, |
| Wireless | |
| Wireless Range | 600' / 182.9 m (Line-of-Sight) |
| Frequency Range | 5 GHz |
| Latency | 80 ms |
| RF Power | 21 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/59.94/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/50 |
| Audio Format | Not Specified by Manufacturer |
| Timecode Support | No |
| Power | |
| Input Power | 5 VDC |
| Battery Type | Transmitter: 1x L-Series Receiver: 1x L-Series |
| Power Consumption | Transmitter: 4.5 W Receiver: 3 W |
| Mounting | |
| Mounting | Transmitter/Receiver: 1x 1/4"-20 Female (Bottom) |
| General | |
| Status Display | Transmitter/Receiver: OLED |
| Environmental Resistance | No |
| Dimensions | Transmitter/Receiver: 4.4 x 2.5 x 0.8" / 113 x 63.5 x 20.5 mm |
| Weight | Transmitter: 5.64 oz / 160.00 g, Excluding Battery Receiver: 5.64 oz / 160.00 g, Excluding Battery |
In The Box
- Shimbol ZO600S SDI & HDMI Wireless Video Transmission System
- Transmitter
- Receiver
- USB Type-C Cable
Reviews
(no ratings yet)Details
- Product: Shimbol ZO600S SDI & HDMI Wireless Video Transmission System
- Manufacturer: Shimbol
- Model: ZO600S
- SKU: ZO600S
- RM Product #: 118785
